Department of Transport HB 2421 Improvement Works, Sea Terminal, Douglas
April 2006 Planning Statement of Case
APPENDIX A
9 -

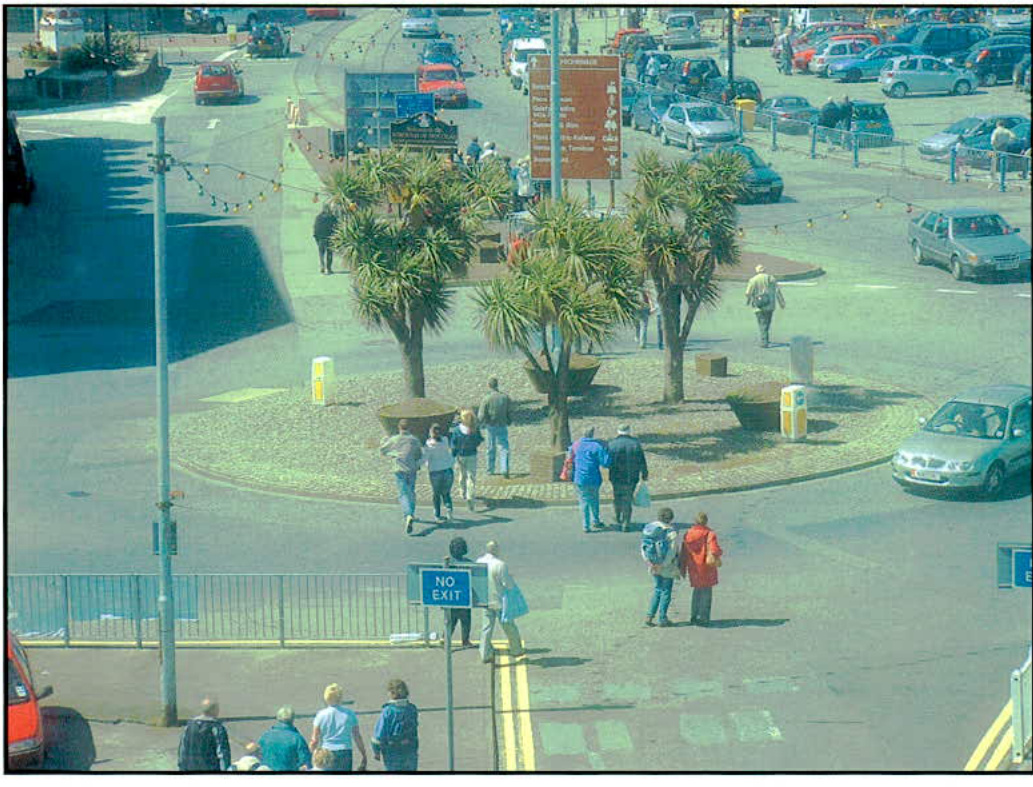

Plate number 1 Approach to Loch Promenade Roundabout
High-angle photograph of a busy roundabout featuring palm trees, pedestrians, and parked cars near a harbor area.

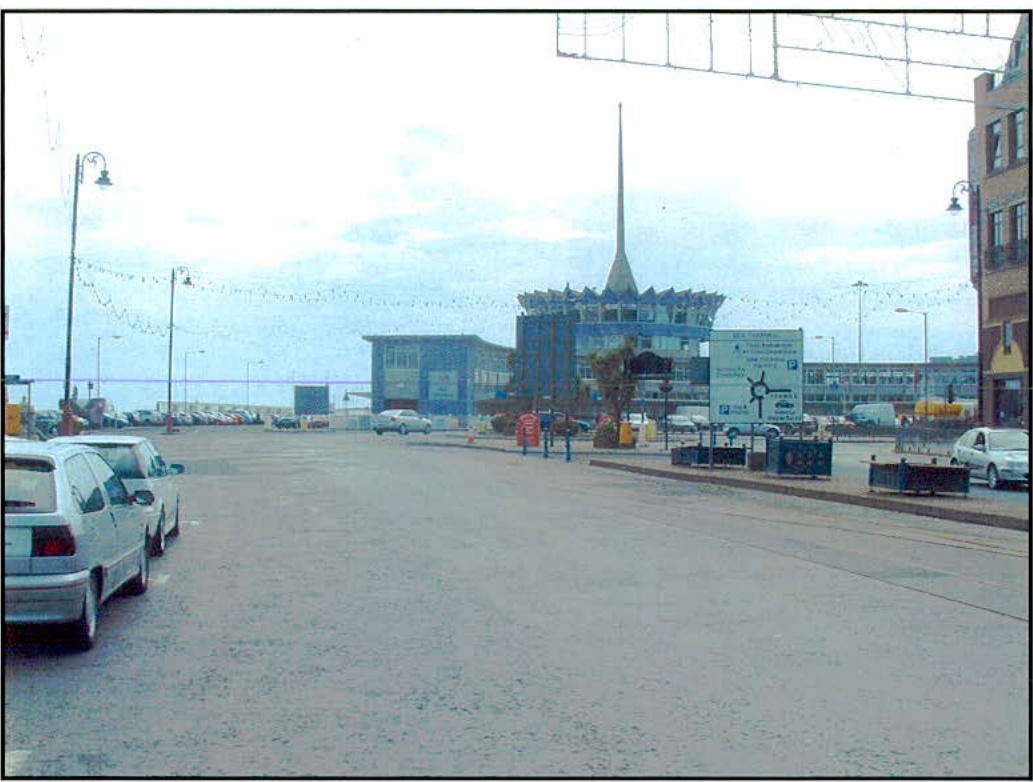

Plate number 2 Inadequate Pedestrian Crossing Facilities
A photograph showing a wide paved harbor access area with parked cars on the left and a distinctive blue building with a spire in the background.

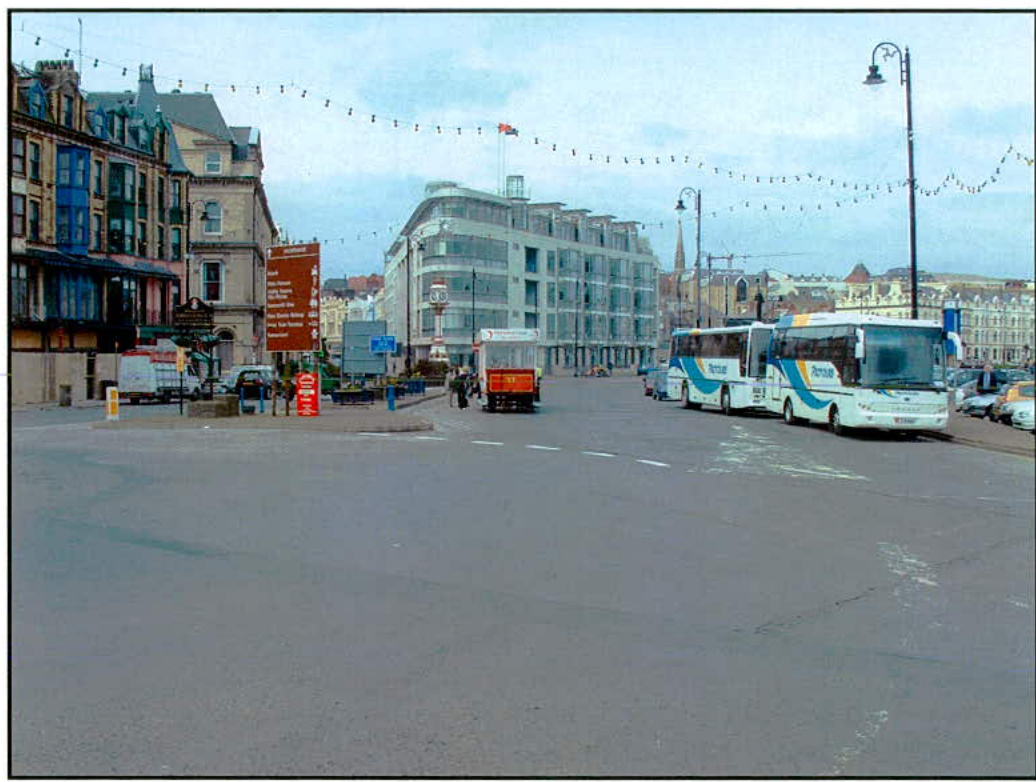

Plate number 3 Horse Tram Terminus
A street-level photograph showing a road junction with buses parked on the right and commercial buildings on the left, illustrating the existing highway conditions.A street-level photograph showing a busy urban road with tram tracks, a roundabout with a stone planter, and a row of multi-story commercial buildings.

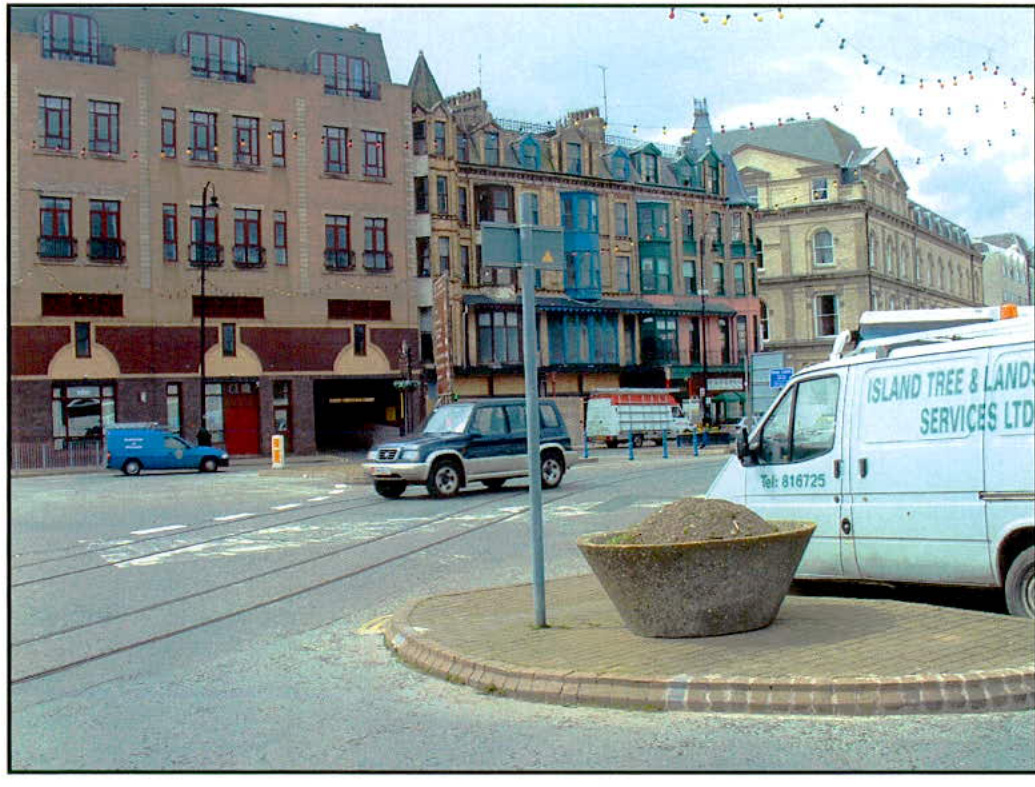

Plate number 4 Bottleneck Car Park Exit Visibility

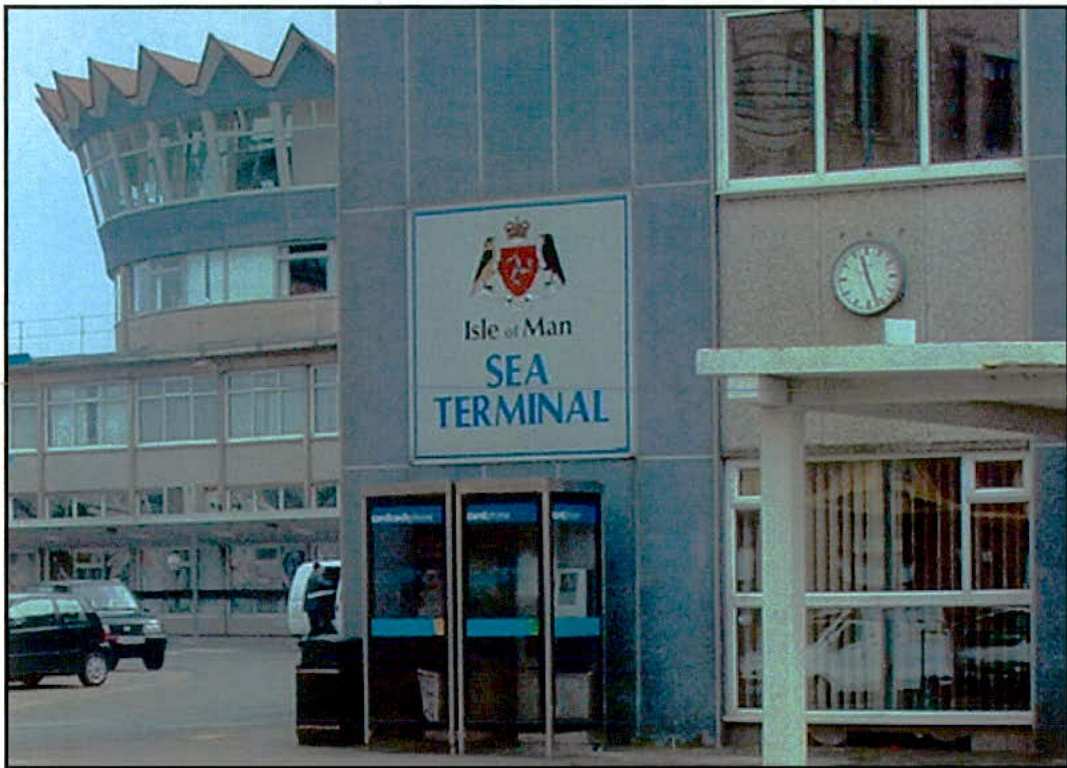

Plate number 5 Existing Sea Terminal Sign Board No 1
Exterior photograph of the Isle of Man Sea Terminal building featuring a sign, clock, and phone booths, with a control tower structure in the background.A photograph of the Isle of Man Sea Terminal building featuring a clock and signage, with a foreground fence displaying traffic instructions.

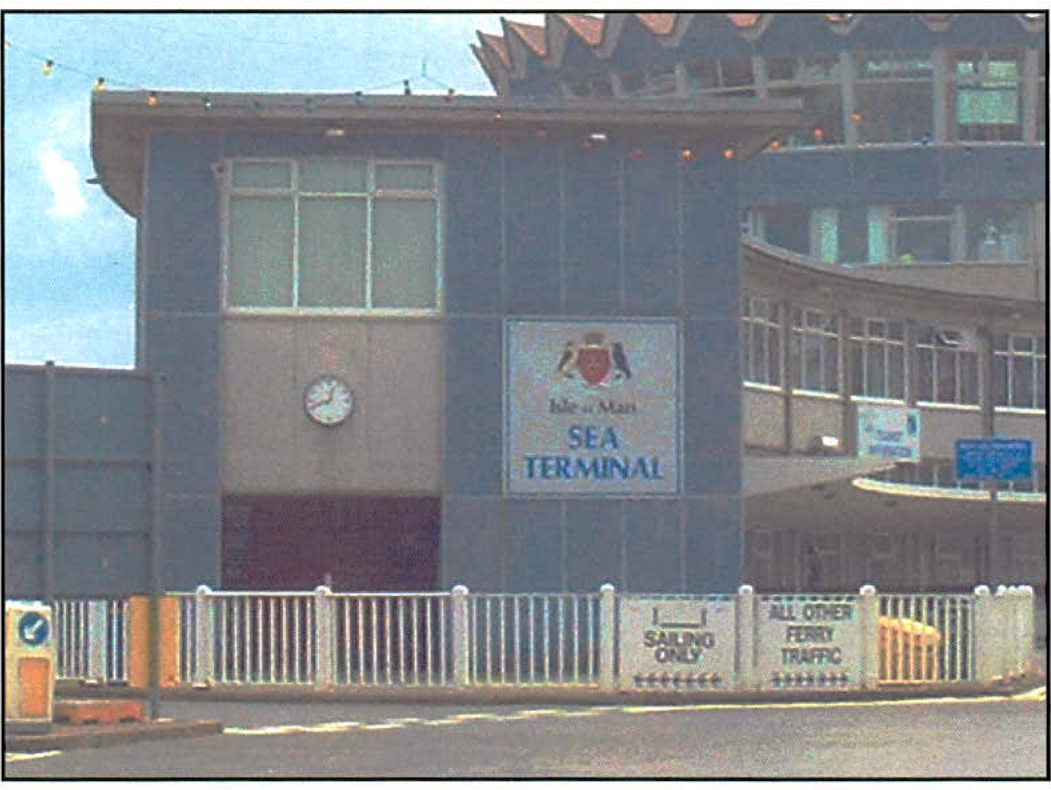

Plate number 6 Existing Sea Terminal Sign Board No 2

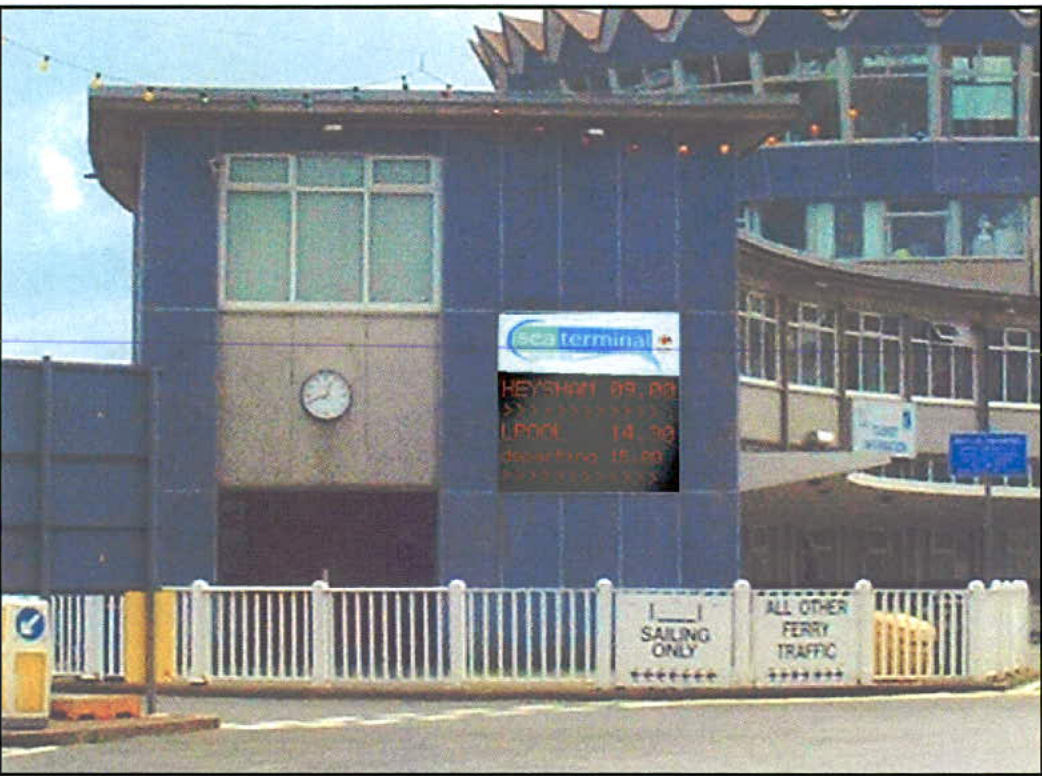

Plate numbers 7a and 7b Proposed Sea Terminal Sign Board
A photograph showing the exterior of a ferry terminal building with a digital departure board and a white fence in the foreground.
Department of Transport HB 2421 Improvement Works, Sea Terminal, Douglas
April 2006 Planning Statement of Case
APPENDIX B
14 -
APPENDIX B Plans scanned separate.
Plans are 1 Existing Arrangement drawno fig 1 2 Proposed General Arrangement draw No fig 2 3 Proposed Surface finishes Draw No fig 3 4 Cross Section draw No fig 4
Department of Transport HB 2421 Improvement Works, Sea Terminal, Douglas
April 2006 Planning Statement of Case
APPENDIX C
15 -
Steam Packet Company
3rd April 2006
Mr C R Christopher Director of Properties Department of Transport Sea Terminal Douglas
Dear Mr Christopher Re Sea Terminal Improvements – Peveril Square Your department has discussed these proposals with the Steam Packet Company and we can confirm we support the proposed scheme.
At present the timely discharge and loading of vessels can be adversely affected by the existing road layout which can on occasion contribute to congestion issues within the port, potential delays to scheduled departures and inconvenience for the travelling public, particularly at busier periods.
Yours sincerely
Mark Woodward Operations Director
The Isle of Man Steam Packet Company Limited, Imperial Buildings, Douglas, Isle of Man IM1 2BY Reservations Telephone (01624) 661661 Local Call Rate 08705 523523 Fax (01624) 645608 E-mail [email protected] Freight Reservations Telephone (01624) 645620 Fax (01624) 645627 E-mail [email protected] Administration Telephone (01624) 645645 Fax (01624) 645609 E-mail [email protected] Finance Telephone (01624) 645645 Fax (01624) 645716 Registered Office: Imperial Buildings, Douglas, Isle of Man IM1 2BY Registered in the Isle of Man No. 73
