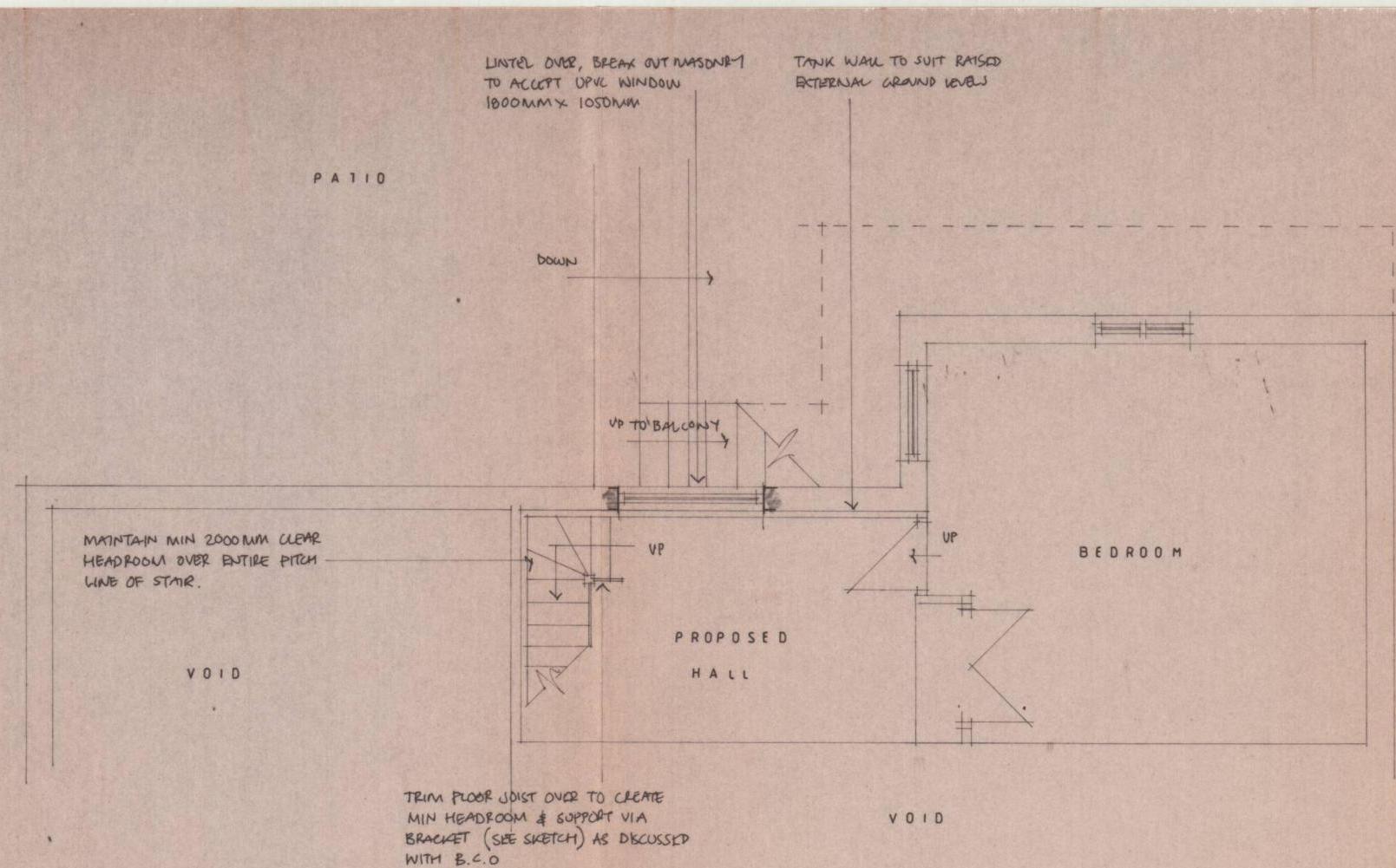

Architectural floor plan showing internal layout with a proposed hall, bedroom, and patio area, including structural annotations for stairs and voids.
GROUND FLOOR PLAN 1/30

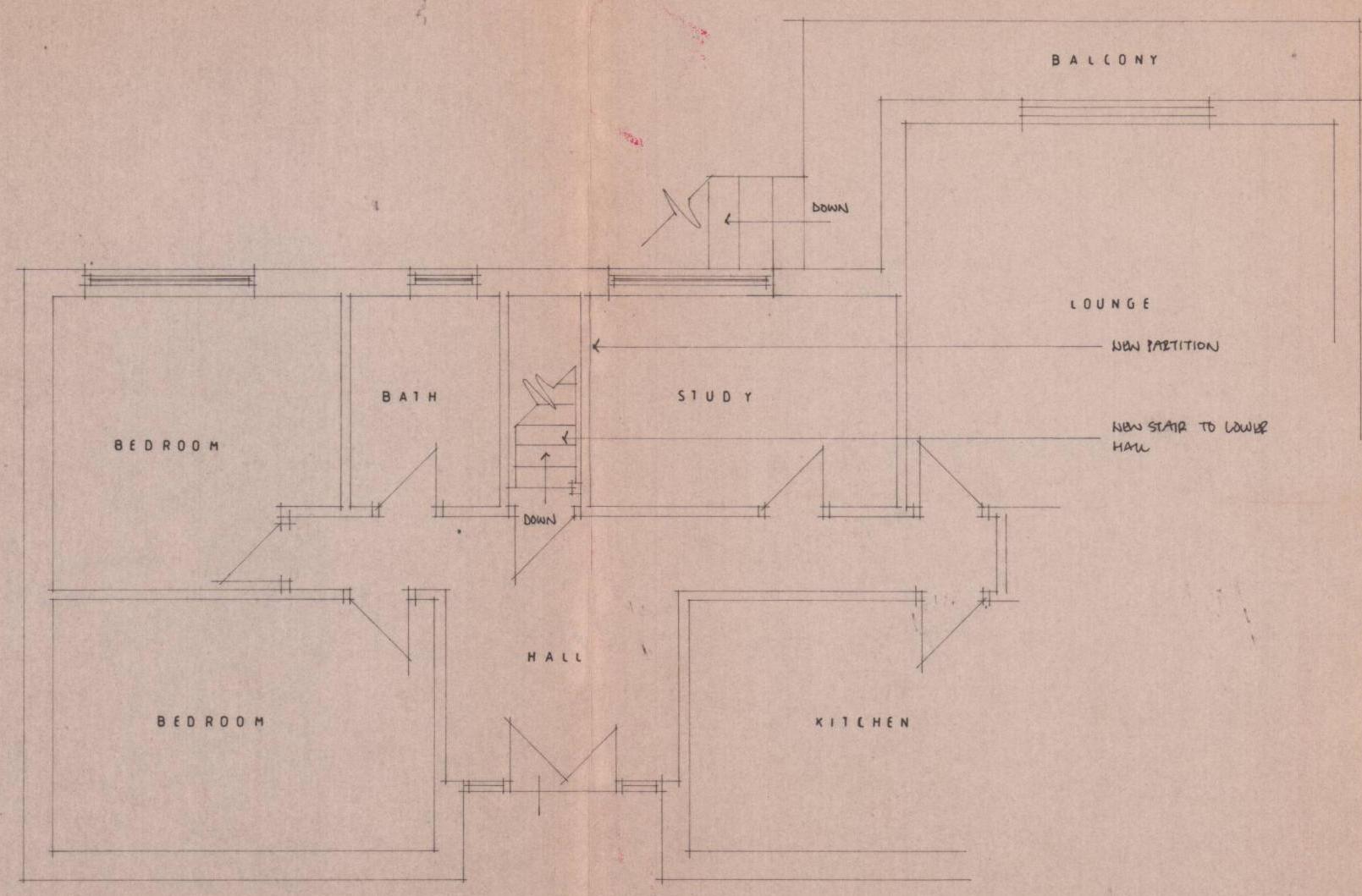

This image displays an architectural floor plan showing the internal layout of a residential property, including rooms like bedrooms, a lounge, and kitchen. Handwritten annotations indicate proposed changes such as a new partition and a new stair to the lower hall.
REAR ELEVATION 1/30

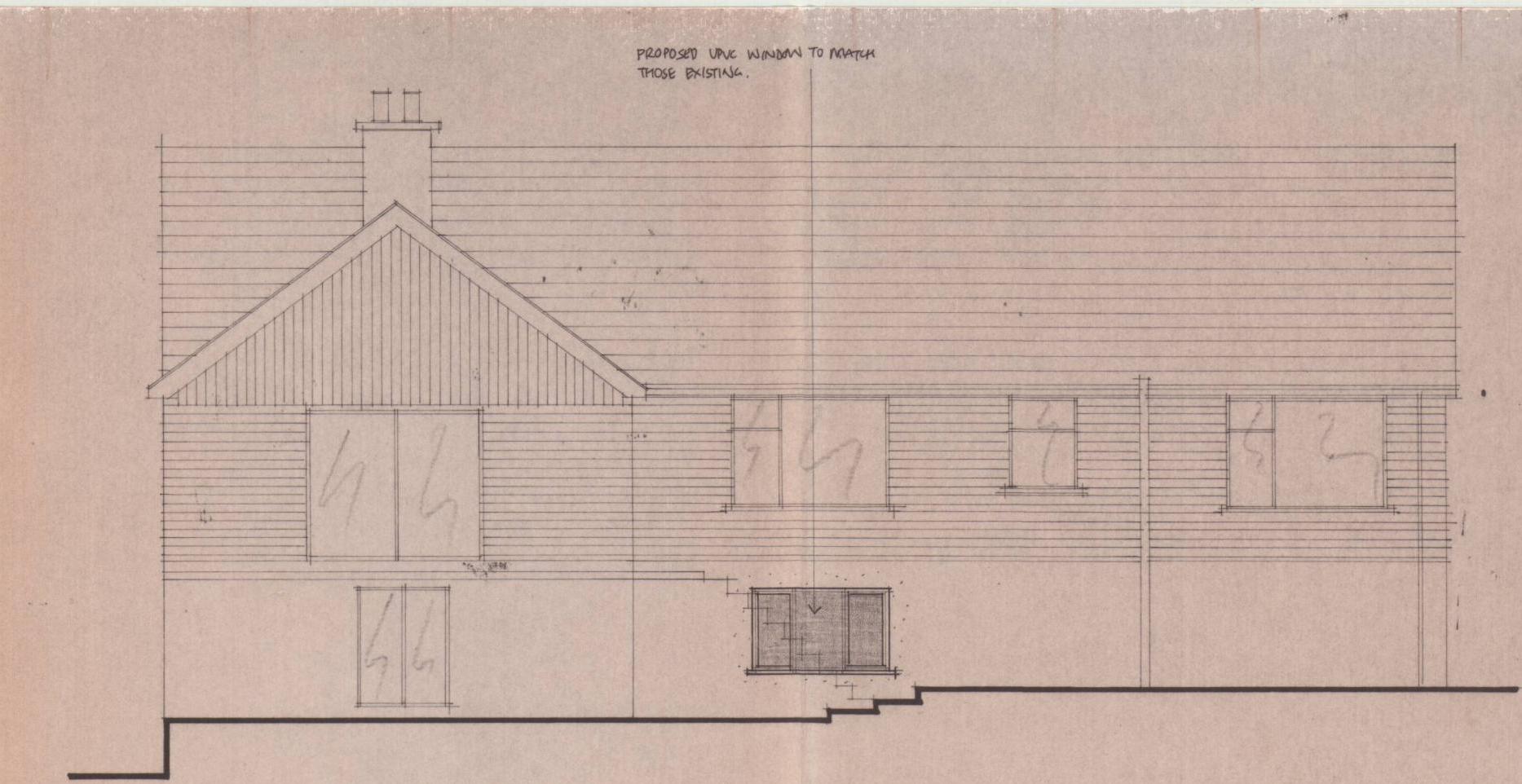

This is an architectural elevation drawing showing the rear facade of a building with horizontal cladding and a chimney. It highlights a proposed window installation to match existing ones, indicating alterations to the structure.
SITE LOCATION PLAN 1/100

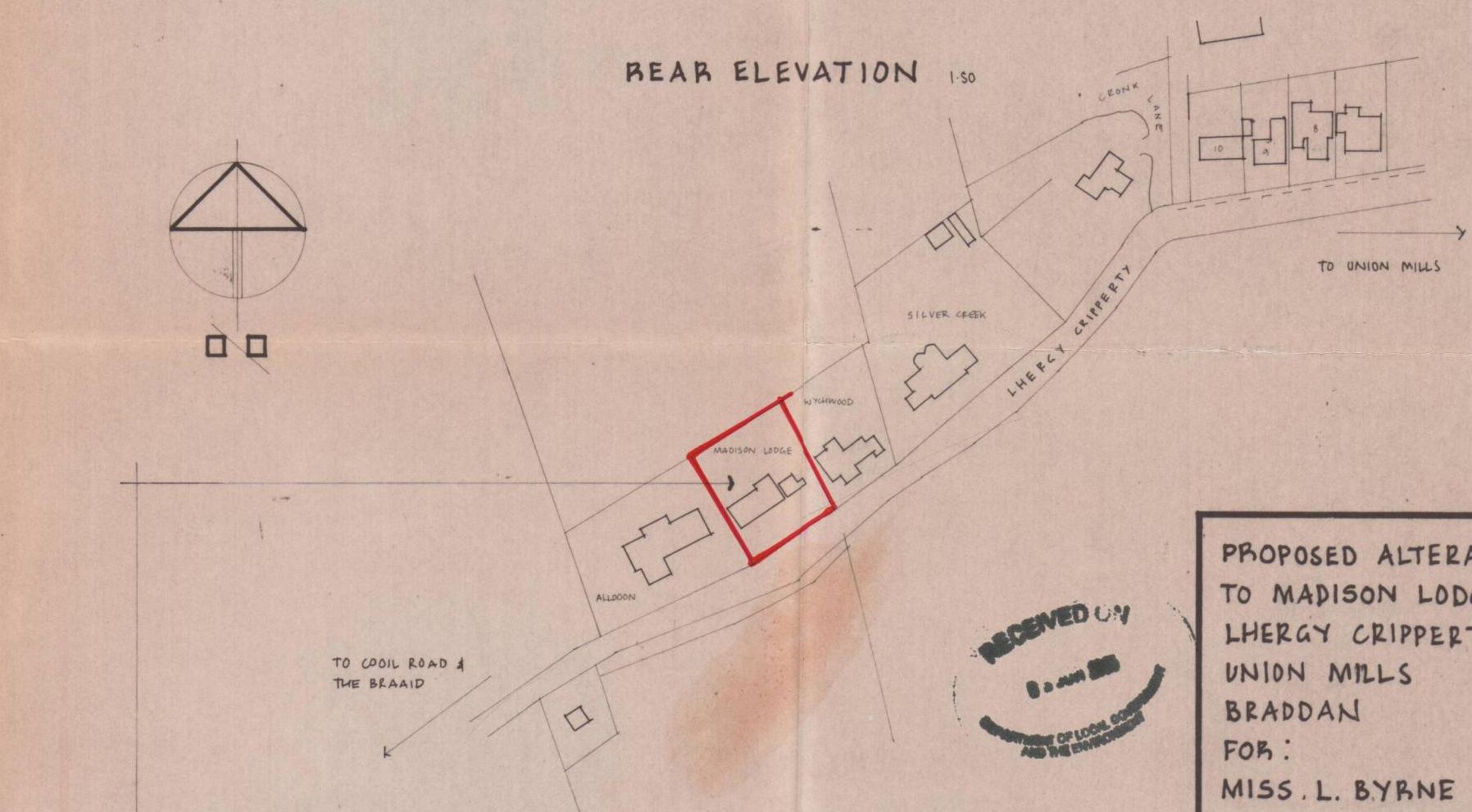

The image displays a hand-drawn site location plan highlighting the property 'Madison Lodge' in red ink, situated on Lhergy Cripperty in Braddan. It shows surrounding neighboring properties and includes an official 'Received' stamp from the Department of Local Government dated June 2005.
BLOCK PLAN 1/600
PROPOSED ALTERATIONS TO MADISON LODGE LHERGY GRIPPERTY UNION MILLS BRADDAN FOR: MISS. L. BYRNE
APPROVAL DRAWING
PLANES 1/60, 1/120 & 1/1600 LATE NAVY DOCK CALL BY NIGHT CALL BY AT TREX

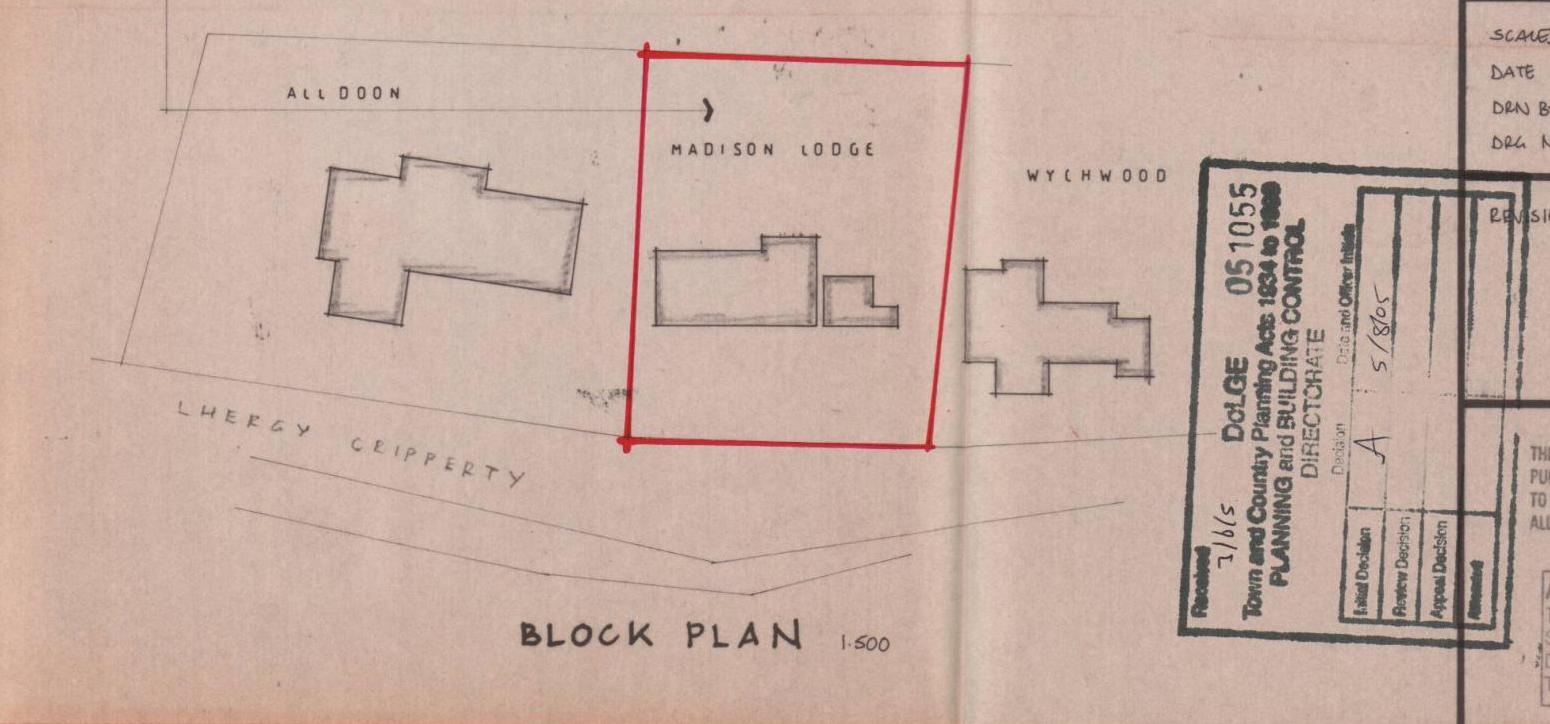

A block plan drawing showing the footprint of a property named 'Madison Lodge' highlighted with a red boundary box, situated between neighboring properties 'Alldoon' and 'Wylhwood'.
Copyright in submitted documents remains with their authors. Request removal
Source & Provenance
Official reference
05/01055/B
Source authority
Isle of Man Government Planning & Building Control
