Philips Lighting Report

Colby AFC Isle of Man

Received	09 00340
Town and Country Planning Act 1999 PLANNING and BUILDING CONTROL DIRECTORATE
Decision.	Date and Order number.
Initial
Appeal
Amended
Returned

RECEIVED ON 17 JUN 2009 DEPT OF LOCAL GOVERNMENT AND THE ENVIRONMENT

Calculations have been prepared for the following areas:-

• Car Park
• Access Road

Parameters taken are as follows:-

• Maintenance Factor of 0.85
• Column Height of 6M
• Lantern inclination 5 degrees
• Lamp Positions 3 & 5

Date: 29.01.2009 Operator: Anthony Cox

Operator Anthony Cox Telephone Fax e-Mail [email protected]

Colby AFC Isle of Man / Luminaire parts list

12 Pieces Philips IRIDIUM SGS252 FG 1xCDO-TT70W/828 CON CR P3 Article No.: Luminaire Luminous Flux: 6300 lm Luminaire Wattage: 86.2 W Luminaire classification according to CIE: 100 CIE flux code: 41 81 99 100 81 Fitting: 1 x CDO-TT70W (Correction Factor 1.000).

27 Pieces Philips IRIDIUM SGS252 FG 1xCDO-TT70W/828 CON CR P5X Article No.: Luminaire Luminous Flux: 6300 lm Luminaire Wattage: 86.2 W Luminaire classification according to CIE: 100 CIE flux code: 42 80 99 100 81 Fitting: 1 x CDO-TT70W (Correction Factor 1.000).

Operator Anthony Cox Telephone Fax e-Mail [email protected]

Philips IRIDIUM SGS252 FG 1xCDO-TT70W/828 CON CR P3 / Luminaire Data Sheet

Luminaire classification according to CIE: 100 CIE flux code: 41 81 99 100 81

Luminous emittance 1:

Due to missing symmetry properties, no UGR table can be displayed for this luminaire.

Philips IRIDIUM SGS252 FG 1xCDO-TT70W/828 CON CR P5X / Luminaire Data Sheet

Luminaire classification according to CIE: 100 CIE flux code: 42 80 99 100 81

Due to missing symmetry properties, no UGR table can be displayed for this luminaire.

Operator Anthony Cox Telephone Fax e-Mail [email protected]

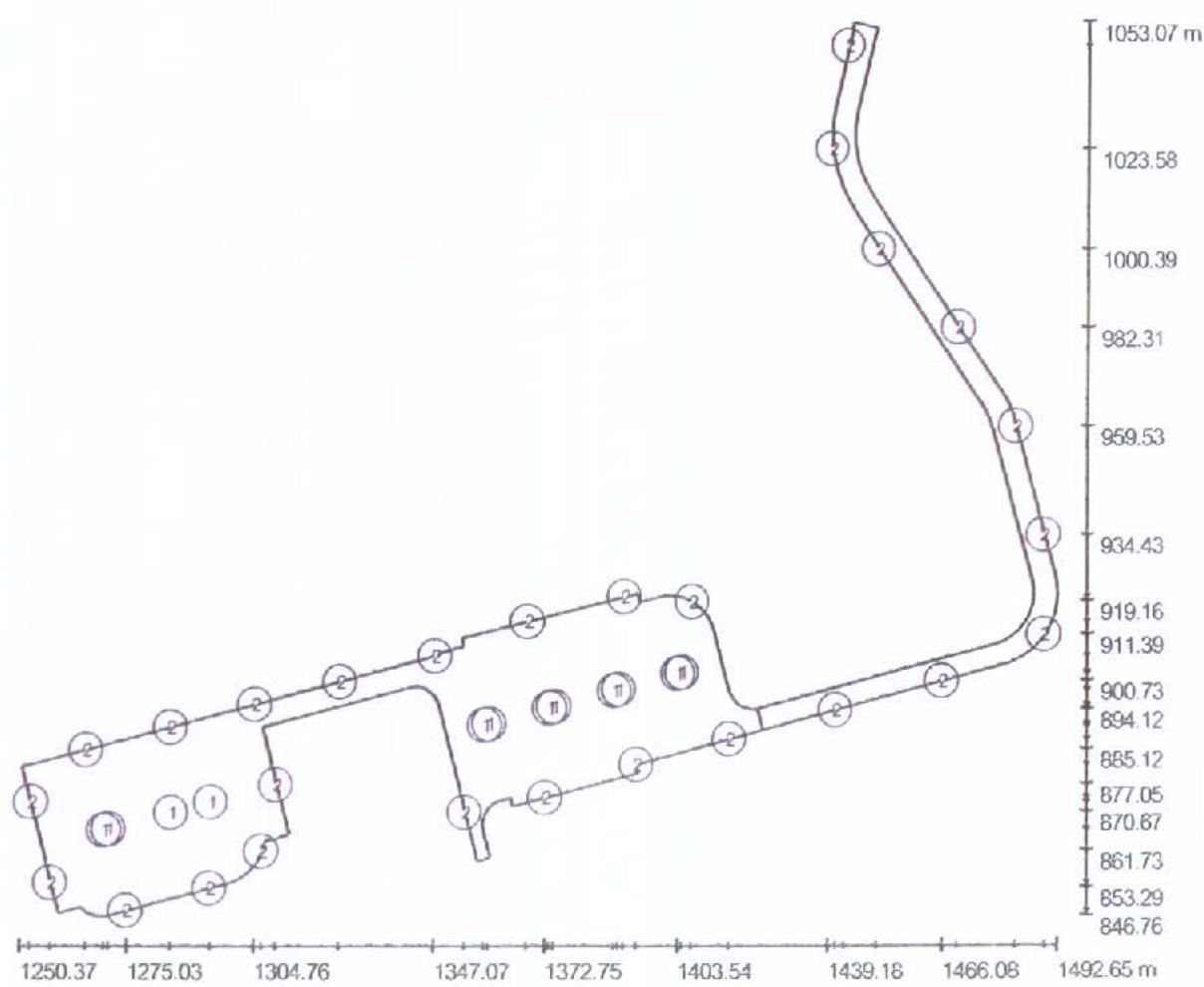

Exterior Scene 1 / Luminaires (layout plan)

Scale 1 : 1733

Luminaire Parts List

Page 5

No.	Pieces	Designation
1	12	Philips IRIDIUM SGS252 FG 1xCDO-TT70W/828 CON CR P3
2	27	Philips IRIDIUM SGS252 FG 1xCDO-TT70W/828 CON CR P5X

Operator Anthony Cox Telephone Fax e-Mail [email protected]

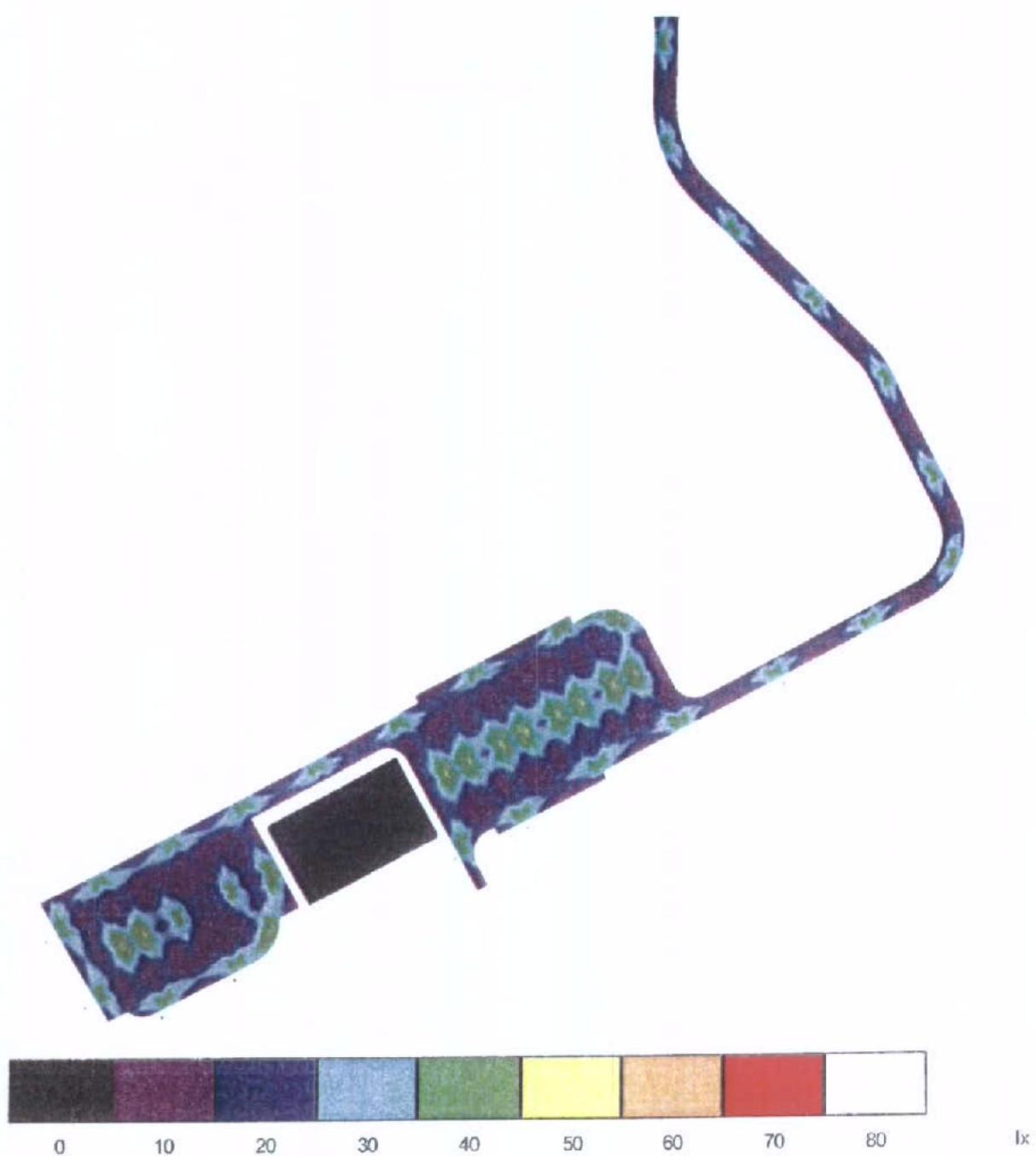

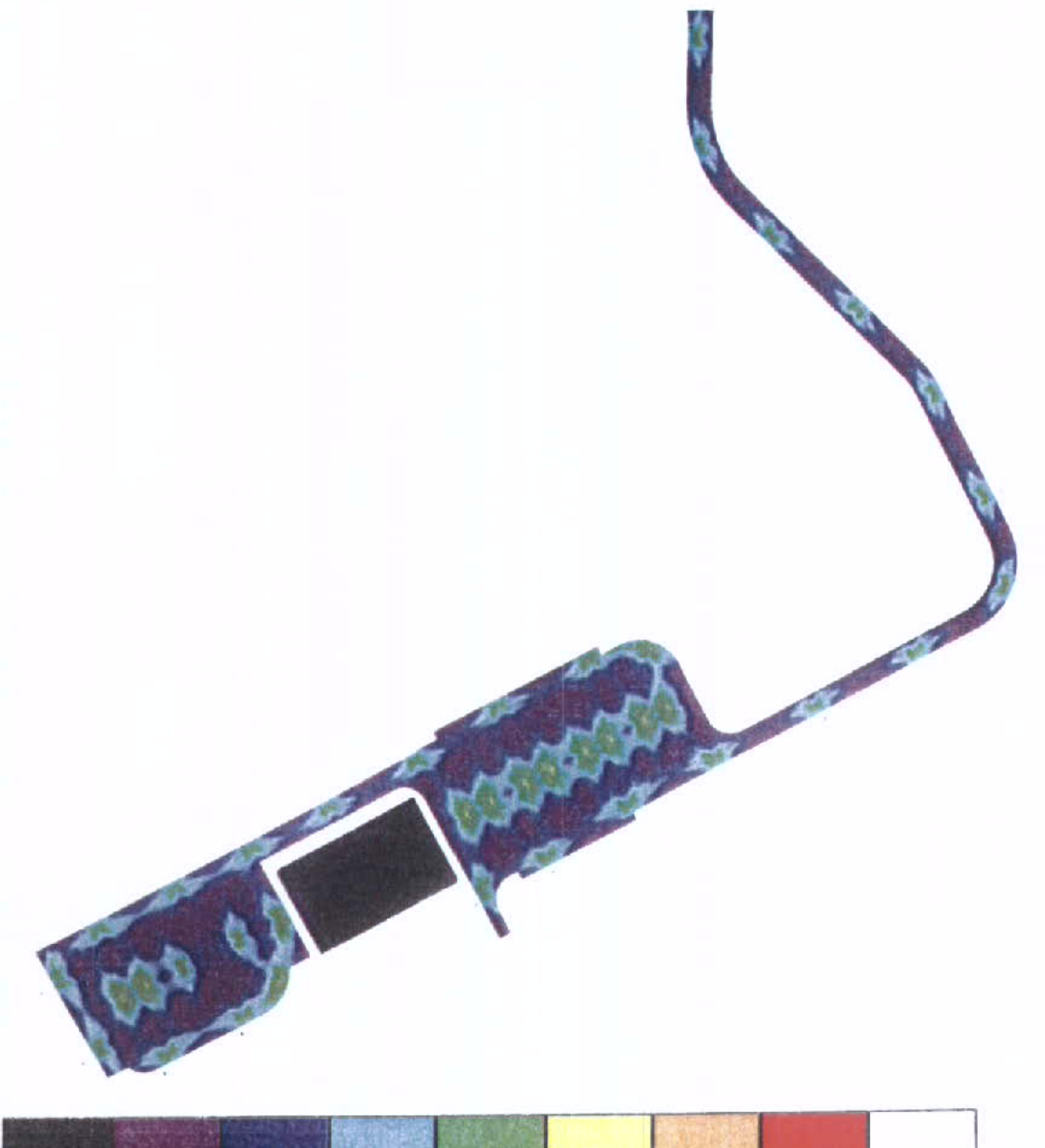

Exterior Scene 1 / False Colour Rendering

Operator Anthony Cox

Telephone

Fax

e-Mail [email protected]

Exterior Scene 1 / Car Park / Surface 1 / Isolines (E)

Values in Lux, Scale 1 : 1239

Position of surface in external scene:

Marked point:

(1264.395 m, 848.945 m, 0.000 m) {{image:2273516}} Grid: 128 x 128 Points

E By [lx] 21

E min [lx] 3.83

E max [lx] 51

u0 0.184

E min / E max 0.075

Operator Anthony Cox

Telephone

Fax

e-Mail [email protected]

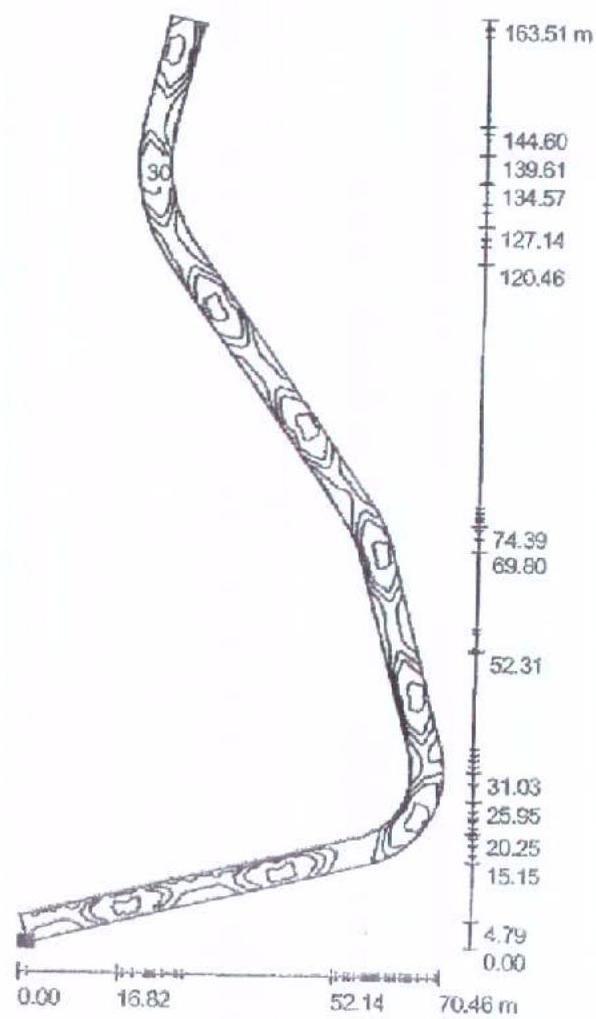

Exterior Scene 1 / Access Road / Surface 1 / Isolines (E)

Position of surface in external scene: Marked point: (1423.583 m, 889.559 m, 0.000 m)

Values in Lux, Scale 1 : 1279

Grid: 128 x 128 Points

E_av [lx] 18

E_min [lx] 4.48

E_max [lx] 38

u0 0.253

E_min / E_max 0.119

Colby AFC Isle of Man • Philips IR100UM SG1252 FG (vC80-1170V/928 CON CR P3 (tVC80-1170V) • Philips IR100UM SG1252 FG (vC80-1170V/928 CON CR PS4 (tVC80-1170V))

Isolines

• 53 lx
• 160 lx
• 250 lx
• 350 lx
• 450 lx

RECEIVED ON 17 JUN 2009 Dept. OF LOCAL GENERATION AND THE ENVIRONMENT
