External Car Park at Ballavartyn Equestrian Centre Newtown, Santon, Isle of Man
For Mr. K. Blaymire
April 2013
Received 10/4/13 1300429 DEPARTMENT OF INFRASTRUCTURE PLANNING and BUILDING CONTROL 1000 2nd Court, 1000 2nd Court, 1000 2nd Court, 1000 2nd Court, 1000 2nd Court
Kay Associates Ltd Chartered Architects
Kay
The calculations shown are based on the following parameters.
Date: 06.03.2013 Operator: Anthony Cox
Operator Anthony Cox Telephone Fax e-Mail anthony.cox& philips .com
Equestrian Centre Newtown | of M Project Cover 1 Table of contents 2 Luminaire parts list 3 PHILIPS SGS113 1xSON-TPP70W Luminaire Data Sheet 4 Philips MVP504 GC 1xCPO-TW60W EB A/65 Luminaire Data Sheet 5 Philips MVP504 GC 1xCPO-TW90W EB A/65 Luminaire Data Sheet 6 Exterior Scene 1 Planning data 7 Luminaires (layout plan) 8 Luminaires (coordinates list) 9 False Colour Rendering 12 Raytrace views view 1 Raytrace rendering 13 view 2 Raytrace rendering 14 Exterior Surfaces Car Park Surface 1 Isolines (E) 15
Operator Anthony Cox Telephone Fax e-Mail anthony.cox&philips.com
15 Pieces Philips MVP504 GC 1xCPO-TW60W EB A/65 Article No.: Luminous flux (Luminaire): 5125 lm Luminous flux (Lamps): 7020 lm Luminaire Wattage: 67.0 W Luminaire classification according to CIE: 100 CIE flux code: 42 77 98 100 72 Fitting: 1 x CPO-TW60W/840 (Correction Factor 1.000).
5 Pieces Philips MVP504 GC 1xCPO-TW90W EB A/65 Article No.: Luminous flux (Luminaire): 7659 lm Luminous flux (Lamps): 10350 lm Luminaire Wattage: 99.0 W Luminaire classification according to CIE: 100 CIE flux code: 45 80 98 100 73 Fitting: 1 x CPO-TW90W/840 (Correction Factor 1.000).
8 Pieces PHILIPS SGS113 1xSON-TPP70W Article No.: Luminous flux (Luminaire): 4686 lm Luminous flux (Lamps): 6600 lm Luminaire Wattage: 80.0 W Luminaire classification according to CIE: 79 CIE flux code: 16 51 82 79 71 Fitting: 1 x SON-TPP70W (Correction Factor 1.000).
Page 3
Operator Anthony Cox Telephone Fax e-Mail anthony.cox&philips.com
Luminaire classification according to CIE: 79 CIE flux code: 16 51 82 79 71

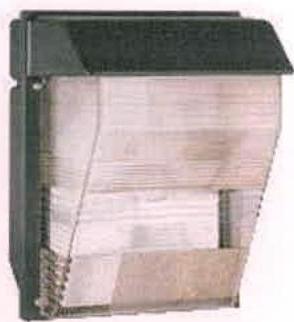

FGC/SGS/XGC113 – all-night lighting FGC/SGS/XGC113 are low-energy security luminaires for all-night security and amenity lighting. The high optical performance of the mirror and refractor bowl produces excellent light distribution for low-level lighting of walls, corridors and surroundings. FGC/SGS/XGC113 offer a choice of long-life lamps for low maintenance costs. <BR/

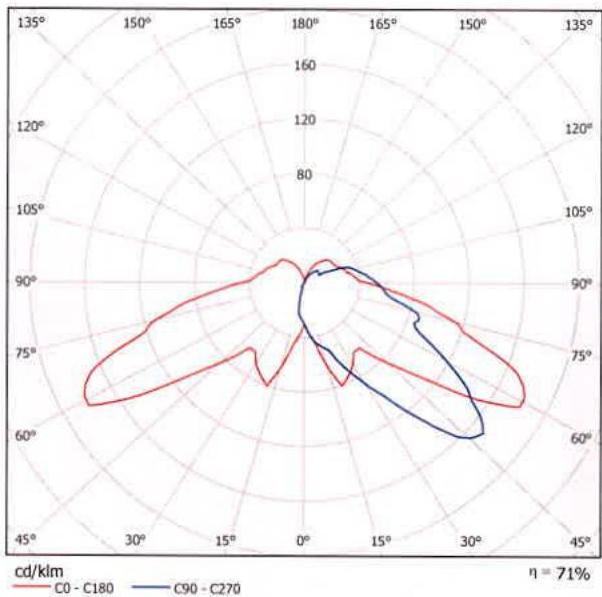

Luminous emittance 1:
Due to missing symmetry properties, no UGR table can be displayed for this luminaire.
Operator Anthony Cox Telephone Fax e-Mail anthony.cox& philips .com
Luminaire classification according to CIE: 100 CIE flux code: 42 77 98 100 72

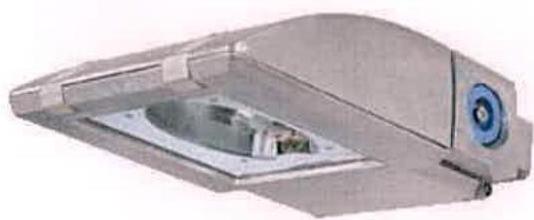

OptiFlood – compact and complete solution
Philips has a long tradition of excellence in environmentally friendly asymmetric floodlighting systems for sports and general area lighting as well as architectural applications. OptiFlood's extremely efficient, best-in-class optical system provides an accurately controlled light distribution – total light cut-off above the horizontal and a peak beam intensity at high angles – keeping obtrusive light to a minimum. Both the MVP504 and MVP506 versions are available with two types of reflector – asymmetric or road-lighting POT optics – for flexibility in application. They can also accommodate CosmoPolis metal-halide lamps for good color rendering, high-pressure sodium lamps for economical operation, and MASTERColour CDM Elite MW lamps for highly efficient lighting with longer-lasting white light. OptiFlood is also available in a LED version (BVP506).
With its compact shape and aesthetically pleasing design, OptiFlood can be used in applications where design and appearance are just important as technical performance. In the design, attention has also been focused on the detailing. This has led to integrated hidden hinges, angle adjustment designed as part of the body and a mounting bracket angled to allow more aesthetic integration onto columns.
Luminous emittance 1:
Due to missing symmetry properties, no UGR table can be displayed for this luminaire.
Operator Anthony Cox
Telephone
Fax
e-Mail anthony.cox&philips.com
Luminaire classification according to CIE: 100 CIE flux code: 45 80 98 100 73
OptiFlood – compact and complete solution
Philips has a long tradition of excellence in environmentally friendly asymmetric floodlighting systems for sports and general area lighting as well as architectural applications. OptiFlood's extremely efficient, best-in-class optical system provides an accurately controlled light distribution – total light cut-off above the horizontal and a peak beam intensity at high angles – keeping obtrusive light to a minimum. Both the MVP504 and MVP506 versions are available with two types of reflector – asymmetric or road-lighting POT optics – for flexibility in application. They can also accommodate CosmoPolis metal-halide lamps for good color rendering, high-pressure sodium lamps for economical operation, and MASTERColour CDM Elite MW lamps for highly efficient lighting with longer-lasting white light. OptiFlood is also available in a LED version (BVP506).
With its compact shape and aesthetically pleasing design, OptiFlood can be used in applications where design and appearance are just important as technical performance. In the design, attention has also been focused on the detailing. This has led to integrated hidden hinges, angle adjustment designed as part of the body and a mounting bracket angled to allow more aesthetic integration onto columns.
Luminous emittance 1:
Due to missing symmetry properties, no UGR table can be displayed for this luminaire.

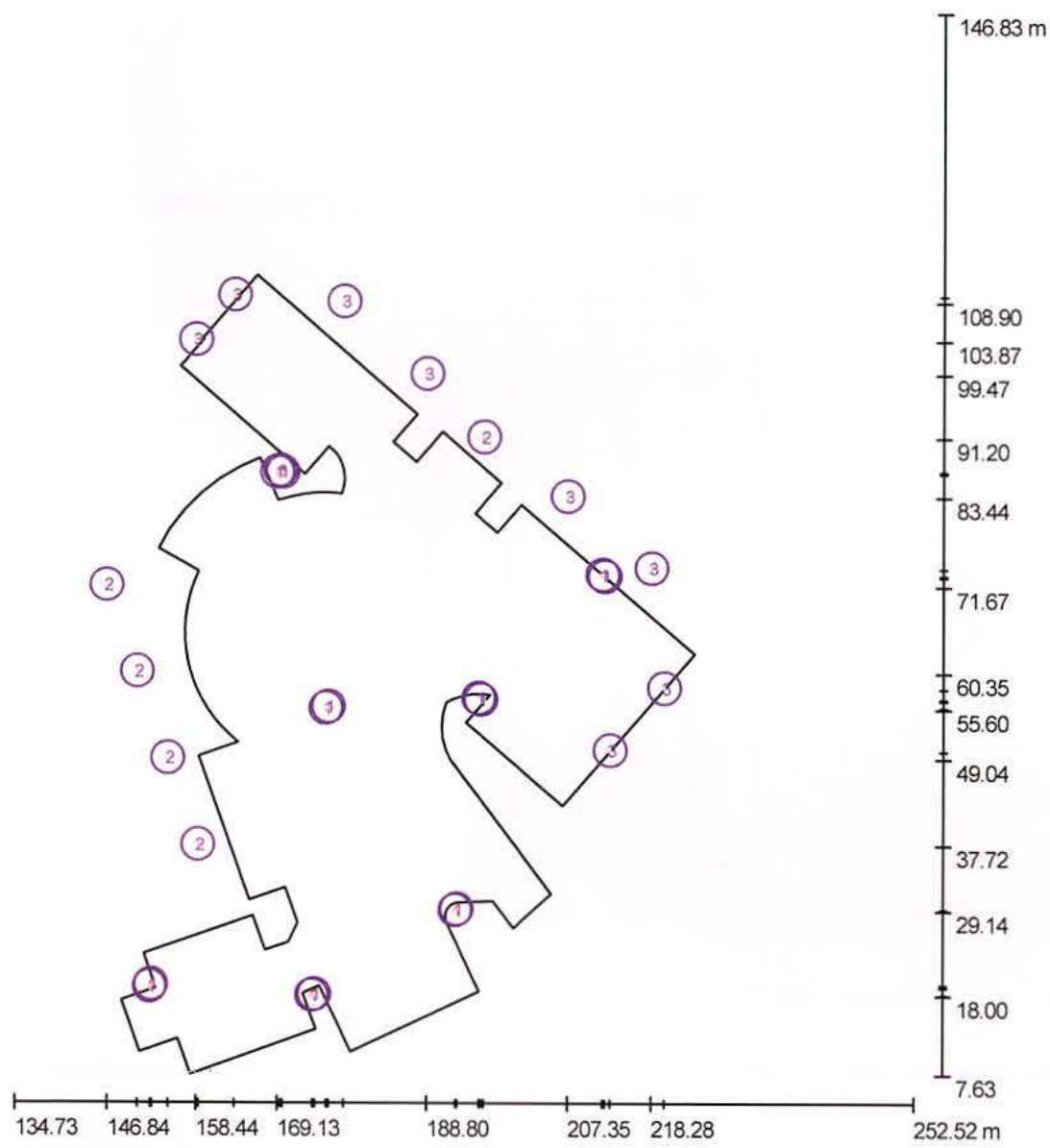

Operator Anthony Cox Telephone Fax e-Mail anthony.cox& philips .com
Maintenance factor: 0.80, ULR (Upward Light Ratio): 4.0% Scale 1:1291
Total: 152652 Total: 209850 2140.0
| No. | Pieces | Designation (Correction Factor) | Φ (Luminaire) [lm] | Φ (Lamps) [lm] | P [W] |
|---|---|---|---|---|---|
| 1 | 15 | Philips MVP504 GC 1xCPO-TW60W EB A/65 (1.000) | 5125 | 7020 | 67.0 |
| 2 | 5 | Philips MVP504 GC 1xCPO-TW90W EB A/65 (1.000) | 7659 | 10350 | 99.0 |
| 3 | 8 | PHILIPS SGS113 1xSON-TPP70W (1.000) | 4686 | 6600 | 80.0 |
Operator Anthony Cox Telephone Fax e-Mail anthony.cox& philips .com

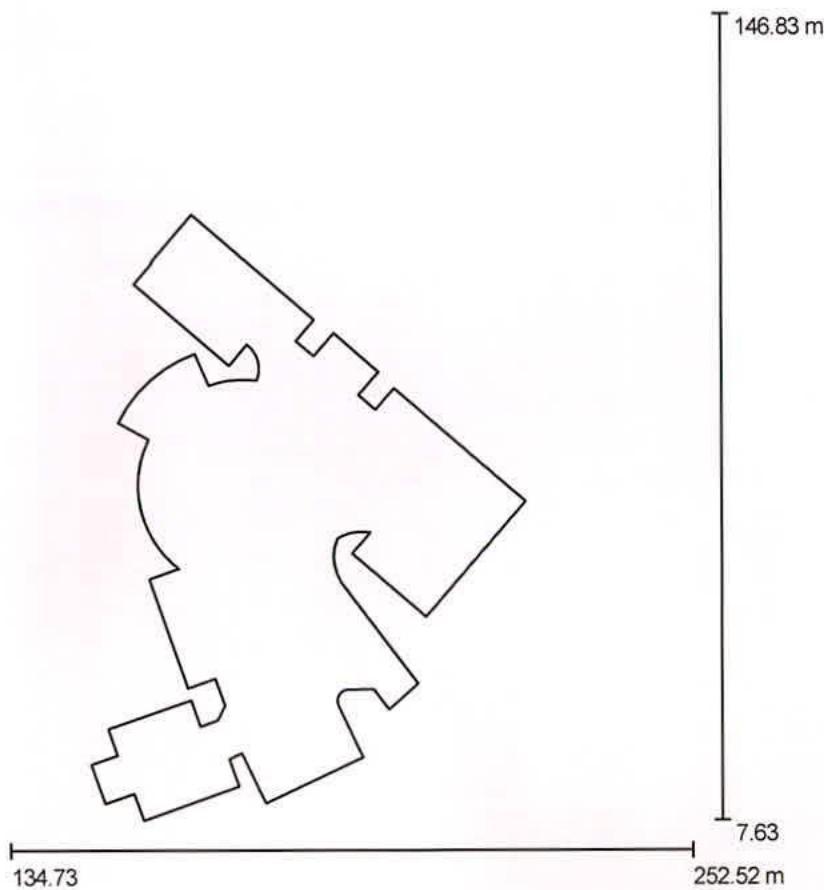

Scale 1 : 942
| No. | Pieces | Designation |
|---|---|---|
| 1 | 15 | Philips MVP504 GC 1xCPO-TW60W EB A/65 |
| 2 | 5 | Philips MVP504 GC 1xCPO-TW90W EB A/65 |
| 3 | 8 | PHILIPS SGS113 1xSON-TPP70W |
Operator Anthony Cox Telephone Fax e-Mail anthony.cox& philips .com
Philips MVP504 GC 1xCPO-TW60W EB A/65 5125 lm, 67.0 W, 1 x 1 x CPO-TW60W/840 (Correction Factor 1.000).
Page 9
| No. | Position [m] | Rotation [°] | ||||
|---|---|---|---|---|---|---|
| X | Y | Z | X | Y | Z | |
| 1 | 173.761 | 18.000 | 6.000 | 5.0 | 0.0 | 94.9 |
| 2 | 192.589 | 29.138 | 6.000 | 5.0 | 0.0 | 100.0 |
| 3 | 192.789 | 29.308 | 6.000 | 5.0 | 0.0 | -15.0 |
| 4 | 174.100 | 18.141 | 6.000 | 5.0 | 0.0 | -44.9 |
| 5 | 195.933 | 56.728 | 6.000 | 5.0 | 0.0 | -100.1 |
| 6 | 195.633 | 56.928 | 6.000 | 5.0 | 0.0 | -5.0 |
| 7 | 175.560 | 55.600 | 6.000 | 5.0 | 0.0 | 170.0 |
| 8 | 175.900 | 55.800 | 6.000 | 5.0 | 0.0 | -110.0 |
| 9 | 169.522 | 86.766 | 6.000 | 5.0 | 0.0 | 0.0 |
| 10 | 169.833 | 86.528 | 6.000 | 5.0 | 0.0 | -90.0 |
| 11 | 169.133 | 86.528 | 6.000 | 5.0 | 0.0 | 175.0 |
| 12 | 152.500 | 19.100 | 6.000 | 5.0 | 0.0 | -144.9 |
| 13 | 152.700 | 19.400 | 6.000 | 5.0 | 0.0 | -79.9 |
| 14 | 212.175 | 72.924 | 6.000 | 5.0 | 0.0 | 170.0 |
| 15 | 211.896 | 73.164 | 6.000 | 5.0 | 0.0 | 85.0 |
