Proposed Lighting Design Statement

Proposed Lighting scheme for the Car Park & Garden Walkway, St John's Mill, Tynwald Mills

Received	131112 12 01518
DEPARTMENT OF INFRASTRUCTURE PLANNING and BUILDING CONTROL DIVISION Town and Country Planning Act 1999 Date and Official Initials
Decision
Appeal

Design Statement

1.0 Introduction

Professional Lighting Design (PLD) has been employed to evaluate and improve the current lighting at St John’s Mill. This statement includes:

• An assessment of the current external lighting situation at the Mill and its associated car parking facilities
• Design considerations we have taken into account when designing the proposed lighting scheme,
• The lighting design proposal including a list of the drawings provided as part of the application.
• A ‘Luminaires Schedule’ detailing the proposed fittings.

2.0 Existing Site

St John’s Mill is situated on the bank of the River Neb which once powered the mill. It is within walking distance of the Tynwald Mills Craft Centre and is opposite some domestic residences. The car park for the mill is situated on the opposite side of the river and is accessed by vehicle from Poortown Road (A20) or via a short walk through the trees and across a bridge for pedestrians.

The car park is currently light by two ‘streetlight’ style lighting columns although it has planning permission for this to be replaced with ‘bollard’ style lights.

The garden walk way (between the mill and the car park) currently has unsuitable lighting positioned on top of columns. This lighting affects the neighbouring properties due to high levels of spill light creating intrusive light pollution.

3.0 Design Considerations

3.1 Environmental considerations

3.2 Due to the location and environmental setting (classified as environmental Zone E1: a national Park or area of outstanding natural beauty) we should be conscious that any new lighting should be sympathetic and limit the amount of obtrusive light.

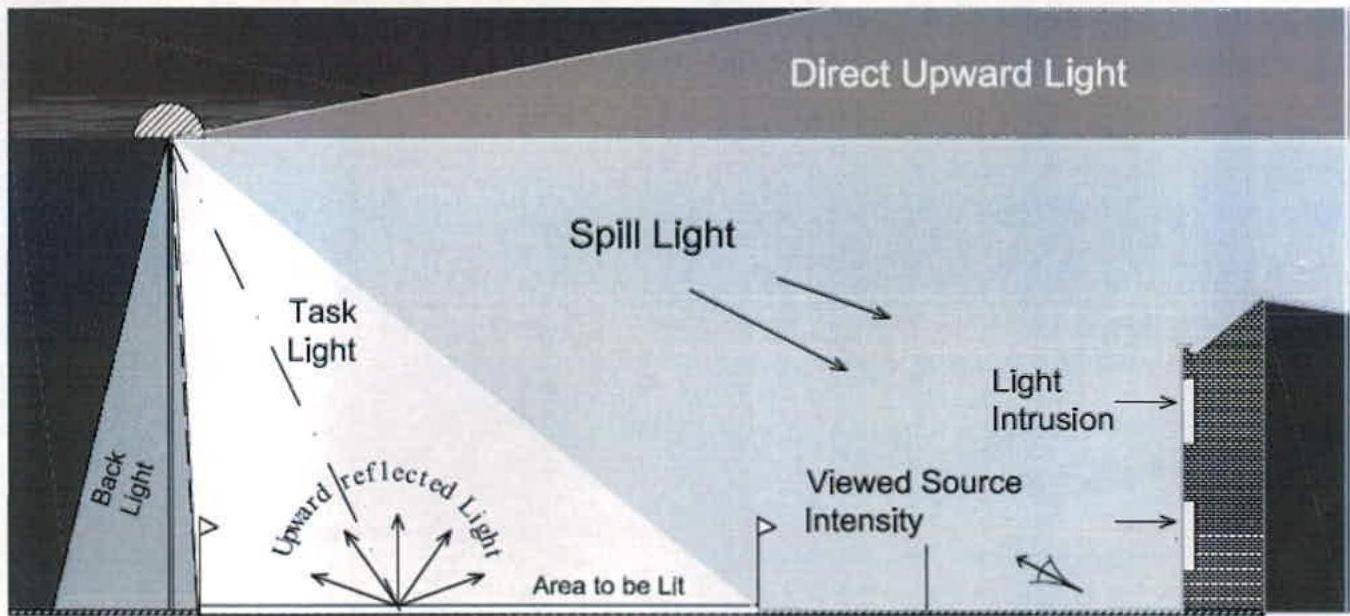

Figure 1 – Types of Obtrusive Light. (taken from GN01:2011 Reduction in obtrusive)

3.3 Energy Efficiency

The proposed lighting design should reduce the energy consumption used by the existing light fittings this can be achieved by using energy efficient and sustainable lighting solutions which will reduce running costs and the annual maintenance costs.

3.4 Spatial Awareness

Whilst still considering the obtrusive nature of light, we can also use artificial light in a controlled manner to highlight significant features of the immediate environment and increase visitor’s a sense of place.

3.5 Task Lighting

The proposed lighting design should address the areas that currently have insufficient light levels i.e. The garden walkway and provide suitable task lighting in the car park for getting in and out of vehicles in safe manner.

4.0 Design Proposal

4.1 Car Park

By replacing the existing street columns with fittings that house a lamp with a suitable Luminaire angle, we can reduce sky glow and improve the level of luminance on the road surface of the car park.

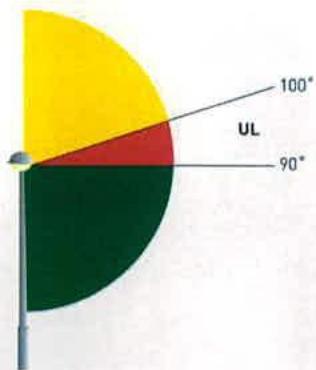

Figure 2 – Critical luminaire angles to reduce sky glow.

4.2 Garden Walkway

Introducing directional illumination along the length of the footbridge will provide sufficient levels of luminance to negotiate the crossing safely but reduce the amount of light spill and light pollution that is intrusive to the neighbouring properties.

Once inside the garden we will continue the concept of direction illumination focused downwards towards the path ways but also introduce some feature lighting i.e. to key trees or seating areas. This will enhance visitors’ sense of place by highlighting the presence of trees and foliage around them which may not be evident during hours of darkness.

4.3 Drawings

DWG 100: Location and Existing Site Plan, Scale 1:1250 @ A3 DWG 102: Proposed Lighting Design for Car Park, Scale 1:100 @A1 DWG 103: Proposed Lighting Design for Garden Walkway, Scale 1:100 @A1 DWG 104: Proposed Lux level calculation, Not to Scale on A3

5.0 Luminaires Schedule :

SCHEDULE of LUMINAIRES
Ref	Manufacturer	Description	Name	Image	Mounting height	Catalogue No	Lamps
							Type	Watts	Qty (per fitting)
L30	iGuzzini	Linear LED IP68 Warm white Colour temperature 3000K Includes non dimmable driver and fixings.	LEDSTRIP		Cove and wall wash	IS3.M250	LED	24w per 5m strip	30 p/m
L154	iGuzzini	Outdoor luminaire with direct light street optic The floodlight can be fitted on poles	Street		Column	IS3. BG83	MH	35w	1
L196	iGuzzini	Bollard flood effect, low glare and highlight pathways and steps.	Glim Cube		bollard	IS3.BB19	LED	1w	1
L197	iGuzzini	Wall mounted with downward, flood effect, low glare and highlight pathways and steps.	Glim Cube		wall
L499	iGuzzini	Circular recessed LED	Ledplus		Depth 78mm	IS3.BB44.713.0	LED	1w	1
