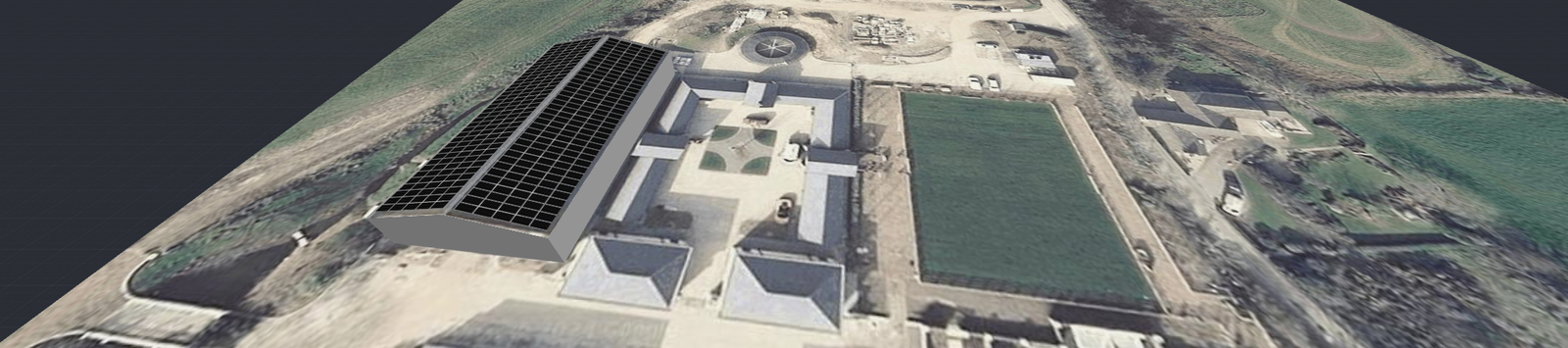

A 3D architectural rendering showing a large solar panel array installed on the roof of a building (manege) within a rural site context.
Isle of Man, Isle of Man Lee Vowles 26 Nov 2024
SYSTEM OVERVIEW 360 PV modules 2 Inverters 360 Optimizers
Simulation Results
Installed DC Power 180.00kWp Max Achieved AC Power 133.20kW Annual Solar Energy Production
158.22MWh
Annual CO2 Emission Saved 30.6t
Annual Equivalent Trees Planted
1,405
Max Achieved DC Power 157.10kW DC/AC Oversizing 118% Max Active AC Power 133.20kW Performance Ratio 90% Annual Specific Production 879kWh/kWp
ESTIMATED MONTHLY ENERGY
0% Energy From Solar
30 MWh
25 MWh
20 MWh
15 MWh
10 MWh
5 MWh
Production
Clipped Energy
● To Grid
● To Home
Consumption
● From Grid
● From Solar
0 Wh
Jan Apr Jul Oct Total clipped energy: 0% Production (kWh) Clipped Energy (kWh) Consumption (kWh) From Grid (kWh)
Month
To Home (kWh)
To Grid (kWh)
From PV (kWh)
Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
-
-
4 -
2 -
-
-
-
Pv Modules
Module Model Peak power Racking type Orientation Azimuth Tilt
180 JA Solar, JAM66S30-500/MR (1000V) 90 kWp
98° 13°
180 JA Solar, JAM66S30-500/MR (1000V) 90 kWp
Total: 360 180 kWp
278° 13°
Bill Of Materials (Bom)
Items Part Number Quantity Price (£) Total (£)
SE66.6K Synergy Manager 2
S500 360
JAM66S30-500/MR (1000V) 360 ELECTRICAL DESIGN Inverters & Storage Strings per inverter Optimizers per string PV modules per string 1 xSE66.6K Synergy Manager 79.53kW | 119% Oversizing
Center Unit
3 x strings
30 x S500
Left Unit
3 x strings
30 x S500
Electrical Design (Continued)
Inverters & Storage Strings per inverter Optimizers per string PV modules per string 1 xSE66.6K Synergy Manager 77.56kW | 116% Oversizing
Center Unit
3 x strings
30 x S500
Left Unit
3 x strings
30 x S500
System Loss Diagram
Global horizontal irradiance
Global irradiance on PV modules
Reflection loss
Energy after PV conversion
Irradiance level loss Temperature loss Optimizer efficiency loss Module quality loss DC Ohmic wiring loss
Energy after DC losses
Inverter efficiency loss
Exportable energy
987.00 kWh/m²
168.72 MWh
160.92 MWh
158.22 MWh
-0.76%
-4.31%
-2.12%
-1.53%
-0.74%
+0.25%
-0.56%
-1.67%
SIMULATION PARAMETERS
LOCATION & GRID
Time zone GMT (Isle_of_Man) Weather station Isle of Anglesey (77.8 km away) Station altitude 8 m Station data source Meteonorm 7.1 Grid 400V L-L, 230V L-N
LOSS FACTORS
Near shading Enabled Albedo 0.20 Bi-Facial Albedo 0.30 Soiling/Snow 0% Incidence angle modifier (IAM), ASHRAE b0 param. 0.05 Thermal loss factor Uc (const) Flush mount 20 Thermal loss factor Uc (const) Tilted 29 LID loss factor 0% System unavailability 0%
