Ballaglonney Street Lighting Design Report

Housing Estate BallagIonney Crosby

Installation : Street Lighting

Project number : P1693 Customer : Mark Pearce - Ellis Brown Processed by : J Jackson Date : 01.11 .2016

1700852

The following values are based on exact calculations on calibrated lamps, luminaires and their arrangement. In practice, gradual divergences can occur.

Guarantee claims for luminaire data are excluded. Relux and the luminaire manufacturers accept no liability for consequential damage and damage which is occasioned to the user or to third parties.

First Page 1 Table of contents 2

1 Luminaire data 1.1 iGuzzini, Twilight (BY94_1271_X126) 1.1.1 Data sheet 3 1.2 iGuzzini, Wow (1344_BU35) 1.2.1 Data sheet 5 1.3 iGuzzini, Wow (1344_BU35) 1.3.1 Data sheet 7 2 Exterior Lighting 2.1 Description, Exterior Lighting 2.1.1 Floor plan 9 2.2 Summary, Exterior Lighting 2.2.1 Result overview, Reference plane 1 10 2.2.2 Result overview, Measuring area (virtual) 1 11 2.2.3 Result overview, Measuring area (virtual) 3 12 2.3 Calculation results, Exterior Lighting 2.3.1 Table, Measuring area (virtual) 1 (E) 13 2.3.2 Table, Measuring area (virtual) 3 (E) 19

Object Installation Project number Date

1 Luminaire data

Housing Estate Ballaglonney Crost Street Lighting : P1693 : 01.11 .2016

Professional Lighting Design

1.1.1 Data sheet

Manufacturer: iGuzzini

BY94_1271_X126 Twilight

BY94 : Outdoor luminaire with an elliptical optic, designed to use LED lamps. Version with cut-off that eliminates skyward flux dispersion. The optical assembly and the pole attachment system are made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The painting stage consists of a primer and a liquid acrylic paint, cured at $150^{\circ} \mathrm{C}$, with a high level of weather and UV ray resistance. Diffusor made of shockproof, UV-stabilised injection moulded polycarbonate. Complete with circuit fitted with Neutral White monochrome LEDs. Optical assembly consisting of an anodized super-pure aluminium upper reflector, a methacrylate lens and a lower reflector made of metallised PC. Replaceable LEDs and driver. Electronic selv driver with automatic internal temperature control system. Overvoltage protection up to 6 KV . All external screws are made of stainless steel.

1271 :

Cylindrical pole made of 70 micron hot galvanised steel, in compliance with UNI EN ISO 1461 (EN 40-5), subsequently surface treated with grey textured acrylic powder paint. The pole consists of a single welded tube, with diameter 76 mm , thickness 3 mm and height 4600 mm ( 4000 mm above ground level). The top end has 4 $\times$ M8 threaded holes for installation of the arms. The slot for the access cover measures $132 \times 38 \mathrm{~mm}$, at a height of 1000 mm from the ground, suitable for fitting the terminal block with one fuse (code 1864). External access cover made of GDALSI 12 aluminium alloy.

X126 :

An EN1706AC 46100LF aluminium alloy installation system is used for poles with ø 76 mm end part and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The painting stage consists of a primer and a liquid acrylic paint, cured at $150^{\circ} \mathrm{C}$, with a high level of weather and UV ray resistance.

BY94.015 - Bilbao - Pole-mounted system for urban and residential parks and gardens - 31,2W 3170lm - Grey 1271.015 - Pole for burial $L=4600$ diam. 76 mm - Grey X126.015 - Installation system for poles with ø 76 mm end part - Grey A24C - Lamp LED NEUTRAL

Luminaire data

Luminaires efficiency CIE Flux Codes Control gear System power Diameter $100 \%(A 30)$ $100.0 \% \uparrow 0.0 \%$ 317197100100 31.2 W 500 mm

Equipped with Number of Designation Power Colour Luminous flux

1

LED NEUTRAL 27 W 4000 : 3170 Im

Object Installation Project number Date

1 Luminaire data

1.1 iGuzzini, Twilight (BY94_1271_X126) 1.1.1 Data sheet {{image:225144}}

Number of	: 1
Designation	: Profile 2
Power	: 19 W
Colour	: 4000
Luminous flux	: 2340 lm

1.2 iGuzzini, Wow (1344_BU35)

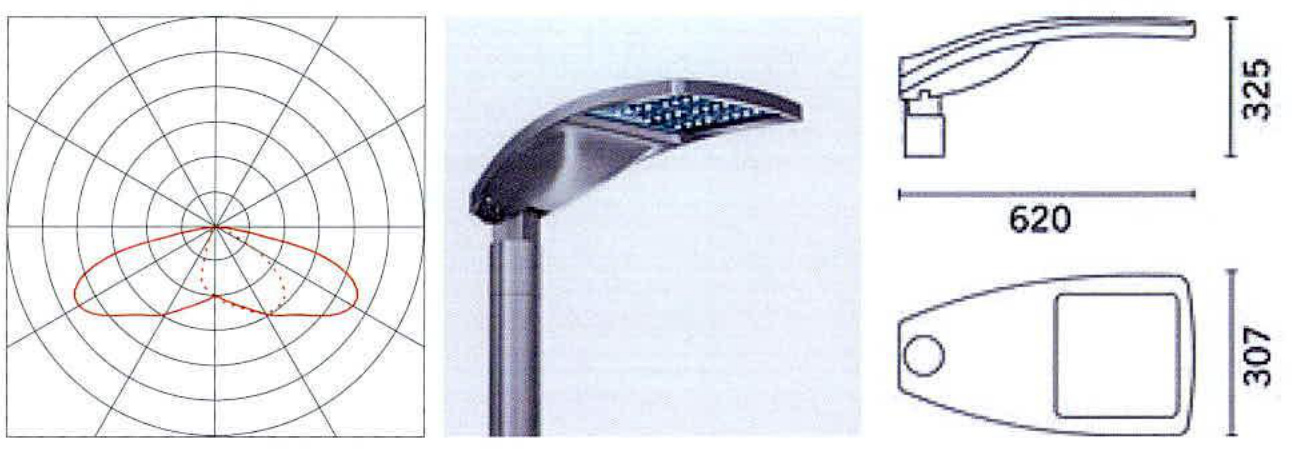

1.2.1 Data sheet

Manufacturer: iGuzzini

1344_BU35 Wow

1344 :

Cylindrical pole made of hot galvanized steel, with 70 micron thickness according to the UNI 5744-66 standard. The pole is made of rolled welded steel. The cross-section and the thickness comply with the homologation specifications of the UNI EN 40 European standard. The anchor plate and the fixing bolts are made of hot galvanized steel with 70 micron thickness in compliance with the UNI 5744-66 standard. The anchor plate base is made of die cast aluminium and consists of two joining parts.

Bu35 :

Outdoor luminaire with direct light narrow street optic for a high level of visual comfort (G4), designed to use LED lamps. The optical assembly and the pole attachment system are made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The painting stage consists of a primer and a liquid acrylic paint, cured at $150^{\circ}\mathrm{C}$, with a high level of weather and UV ray resistance. Option of also adjusting, with a graduated scale, the inclination in relation to the road surface of $\pm 20^{\circ}$ (in $5^{\circ}$ steps) for a pole-top installation and $+5^{\circ}/-20^{\circ}$ (in $5^{\circ}$ steps) for a lateral installation. 5 mm thick tempered sodium-calcium closure glass. The glass secured to the frame closes the led optical assembly which is secured to the components assembly with a hinge and 2 screws. The high IP rating is guaranteed by the silicone gasket placed between the two elements. Complete with circuit featuring monochrome LEDs and silver aluminium reflectors. LED assembly can be replaced directly on site. Possibility of replacing the leds in groups of 12 in the laboratory. Power supply unit, connected with fast-coupling connectors, can be removed with clip. Multipower Half Phase electronic control gear with or without a control cable. The Driver recognises midnight by reducing the light flux two hours before midnight from $100\%$ to $70\%$. This lasts for 6 hours and then the flux is increased to $90\%$ until the luminaire turns off.

If the control cable line state is altered (for example, with a sensor) light flux returns to $100\%$.

Driver with automatic internal temperature control system. The optical assembly is fixed to the wall-mounted or pole-top attachment with two clamping screws and two safety grub screws facilitate assembly. The light flow emitted in the upper hemisphere of the system in the horizontal position is null (in conformity with the strictest standards for the prevention of light pollution). All external screws are made of stainless steel.

1344.015 - Steel pole with base-plate D=102 mm H=5000 mm - Grey BU35.015 - Pole-mounted system - 620x3075mm optical assembly - Neutral White - ST1 street optic - DALI - 18,2W 1810lm (Profile 1) - 23,4W 2340lm (Profile 2) - 29,5W 2910lm (Profile 3) - 4000K - Grey LA74 - Lamp Profile 2

Luminaire data

Equipped with

Luminaires efficiency	: 100% (A30)
	: ↓ 100.0% ↑ 0.0%
CIE Flux Codes	: 35 72 97 100 100
Control gear	:
System power	: 23.4 W
Length	: 610 mm
Width	: 305 mm

Object : Housing Estate Ballaglonney Crost Installation : Street Lighting Project number : P1693 Date : 01.11.2016

1 Luminaire data PROFESSIONAL LIGHTING DESIGN 1.2 iGuzzini, Wow (1344_BU35) 1.2.1 Data sheet

Object : Housing Estate Ballaglonney Crosst Installation : Street Lighting Project number : P1693 Date : 01.11.2016 1 Luminaire data PROFESSIONAL LIGHTING DESIGN 1.3 iGuzzini, Wow (1344_BU35) 1.3.1 Data sheet Manufacturer: iGuzzini

1344_BU35 Wow 1344 : Cylindrical pole made of hot galvanized steel, with 70 micron thickness according to the UNI 5744-66 standard. The pole is made of rolled welded steel. The cross-section and the thickness comply with the homologation specifications of the UNI EN 40 European standard. The anchor plate and the fixing bolts are made of hot galvanized steel with 70 micron thickness in compliance with the UNI 5744-66 standard. The anchor plate base is made of die cast aluminium and consists of two joining parts.

BU35 : Outdoor luminaire with direct light narrow street optic for a high level of visual comfort (G4), designed to use LED lamps. The optical assembly and the pole attachment system are made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. Option of also adjusting, with a graduated scale, the inclination in relation to the road surface of ± 20°(in 5° steps) for a pole-top installation and +5°/-20° (in 5° steps) for a lateral installatione. 5 mm thick tempered sodium-calcium closure glass. The glass secured to the frame closes the led optical assembly which is secured to the components assembly with a hinge and 2 screws. The high IP rating is guaranteed by the silicone gasket placed between the two elements. Complete with circuit featuring monochrome LEDs and silver aluminium reflectors. LED assembly can be replaced directly on site. Possibility of replacing the leds in groups of 12 in the laboratory. Power supply unit, connected with fast-coupling connectors, can be removed with clip. Multipower Half Phase electronic control gear with or without a control cable. The Driver recognises midnight by reducing the light flux two hours before midnight from 100% to 70%. This lasts for 6 hours and then the flux is increased to 90% until the luminaire turns off. If the control cable line state is altered (for example, with a sensor) light flux returns to 100%. Driver with automatic internal temperature control system. The optical assembly is fixed to the wall-mounted or pole-top attachment with two clamping screws and two safety grub screws facilitate assembly. The light flow emitted in the upper hemisphere of the system in the horizontal position is null (in conformity with the strictest standards for the prevention of light pollution). All external screws are made of stainless steel.

Luminaire data Luminaires efficiency : 100% (A30) ↓ 100.0% ↑ 0.0% CIE Flux Codes : 35 72 97 100 100 Control gear : System power : 29.5 W Length : 610 mm Width : 305 mm

Equipped with Number of : 1 Designation : Profile 3 Power : 24 W Colour : 4000 Luminous flux : 2910 lm

1344_1344_BU35 Wow

Object : Housing Estate Ballaglonney Crost Installation : Street Lighting Project number : P1693 Date : 01.11.2016

1 Luminaire data

PROFESSIONAL LIGHTING DESIGN

1.3 iGuzzini, Wow (1344_BU35)

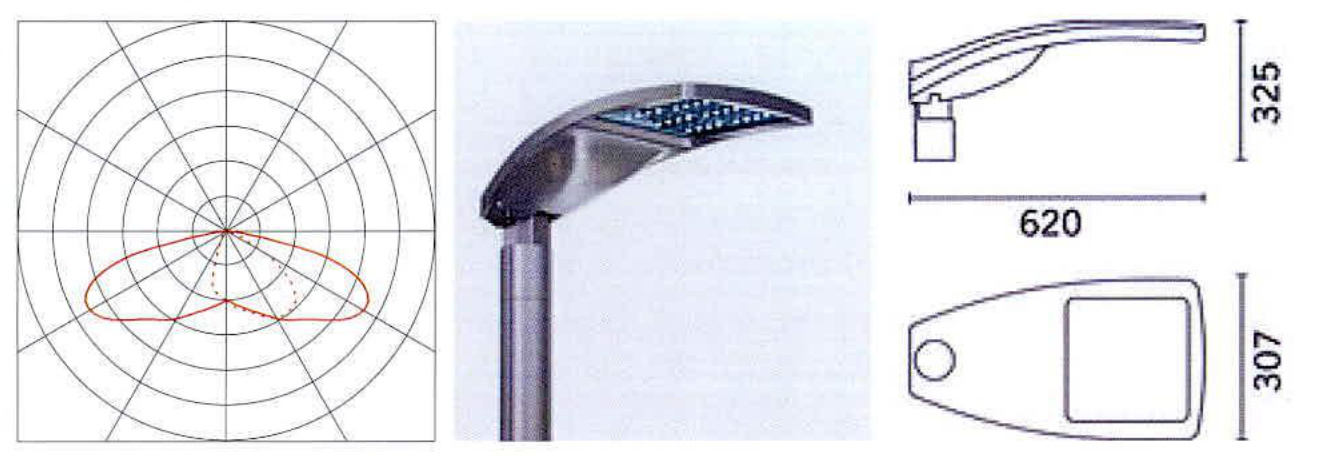

1.3.1 Data sheet

Object : Housing Estate Ballaglonney Crost Installation : Street Lighting Project number : P1693 Date : 01.11.2016

2 Exterior Lighting

2.1 Description, Exterior Lighting

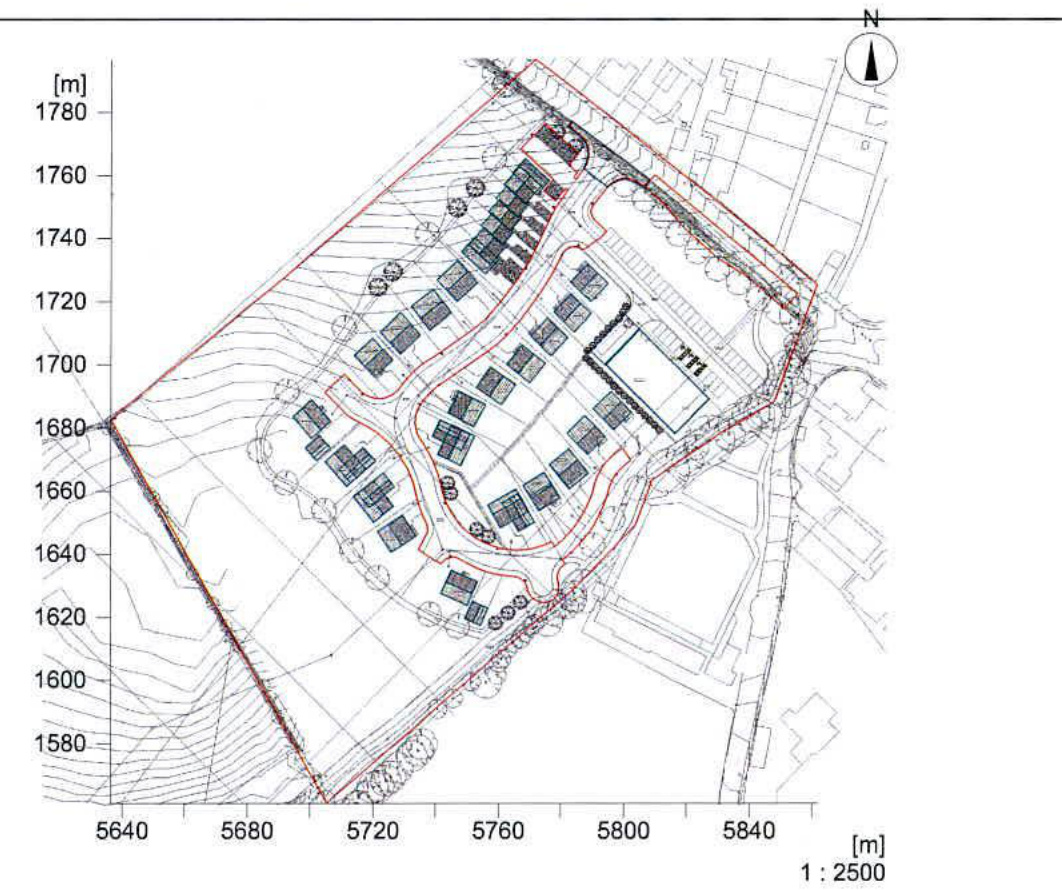

2.1.1 Floor plan

A technical site plan showing the proposed layout of a residential development with contour lines indicating topography and landscaping.

2 Exterior Lighting

Order No. : 1344_BU35
Luminaire name : Wow
Equipment : 1 x Profile 3 24 W / 2910 lm

This image displays a site layout plan for a proposed residential development, showing the arrangement of houses, access roads, and landscaping within a red-shaded boundary. It includes topographical contour lines on... — This image displays a site layout plan for a proposed residential development, showing the arrangement of houses, access roads, and landscaping within a red-shaded boundary. It includes topographical contour lines on the left and a black-and-white map of the surrounding area on the right.

2.2 Summary, Exterior Lighting

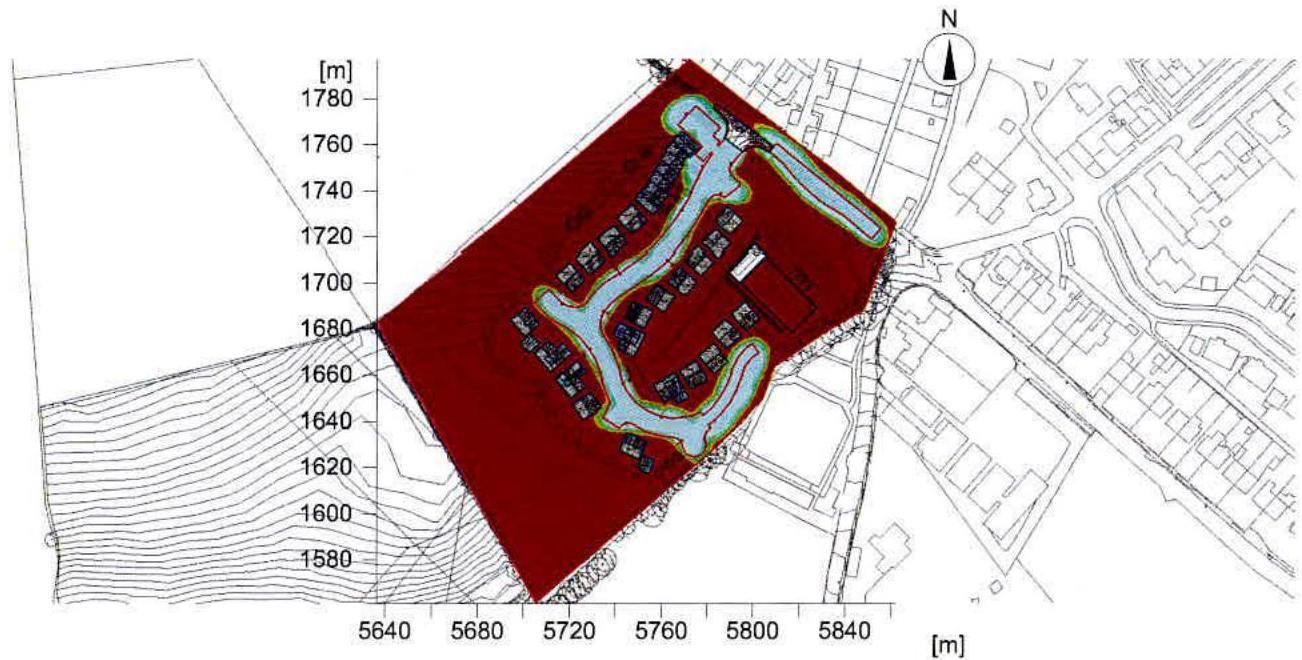

2.2.1 Result overview, Reference plane 1

Illuminance [lx]

General

Calculation algorithm used Average indirect fraction Height of evaluation surface 0.00 m Maintenance factor 0.80

Total luminous flux of all lamps 58740 lm Total power 586 W Total power per area (26718.20 m²) 0.02 W/m² (1.19 W/m²/100lx)

Illuminance

Average illuminance Eav 1.8 lx Minimum illuminance Emin 0 lx Maximum illuminance Emax 24.6 lx Uniformity g1 Emin/Em 1:--- (---) Uniformity g2 Emin/Emax 1:--- (---)

iGuzzini

1.5

Order No. : BY94_1271_X126
Luminaire name : Twilight
Equipment : 1 x LED NEUTRAL 27 W / 3170 lm

Order No. : 1344_BU35
Luminaire name : Wow
Equipment : 1 x Profile 2 19 W / 2340 lm
