Sun Shadow Evidence Report

01

Evidence to Demonstrate the Direction of the Sun's Shadow

Photo below displays No.5 & No.3

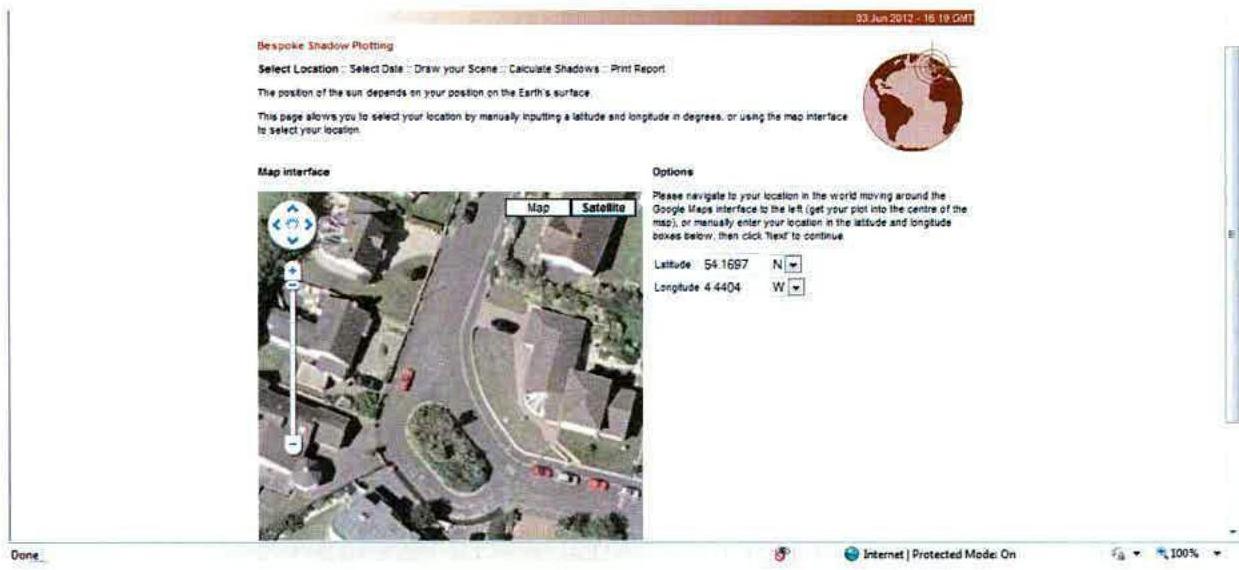

Having drawn a shape with dimensions of the proposed west "wing" of the development, and using the sun positions on selected days and times, the direction of the shadow cast has been established. The examples below demonstrate that the sun's shadow does impact materially upon No.3 lying to the north of No.5.

Example 1

Using the above co-ordinates, a date of 13th September, a roof height of 7.2m at 12.00 and 14.00 the shadow can be identified as falling toward No. 3 Majestic Drive

Evidence to Demonstrate the Direction of the Sun's Shadow

Example 2

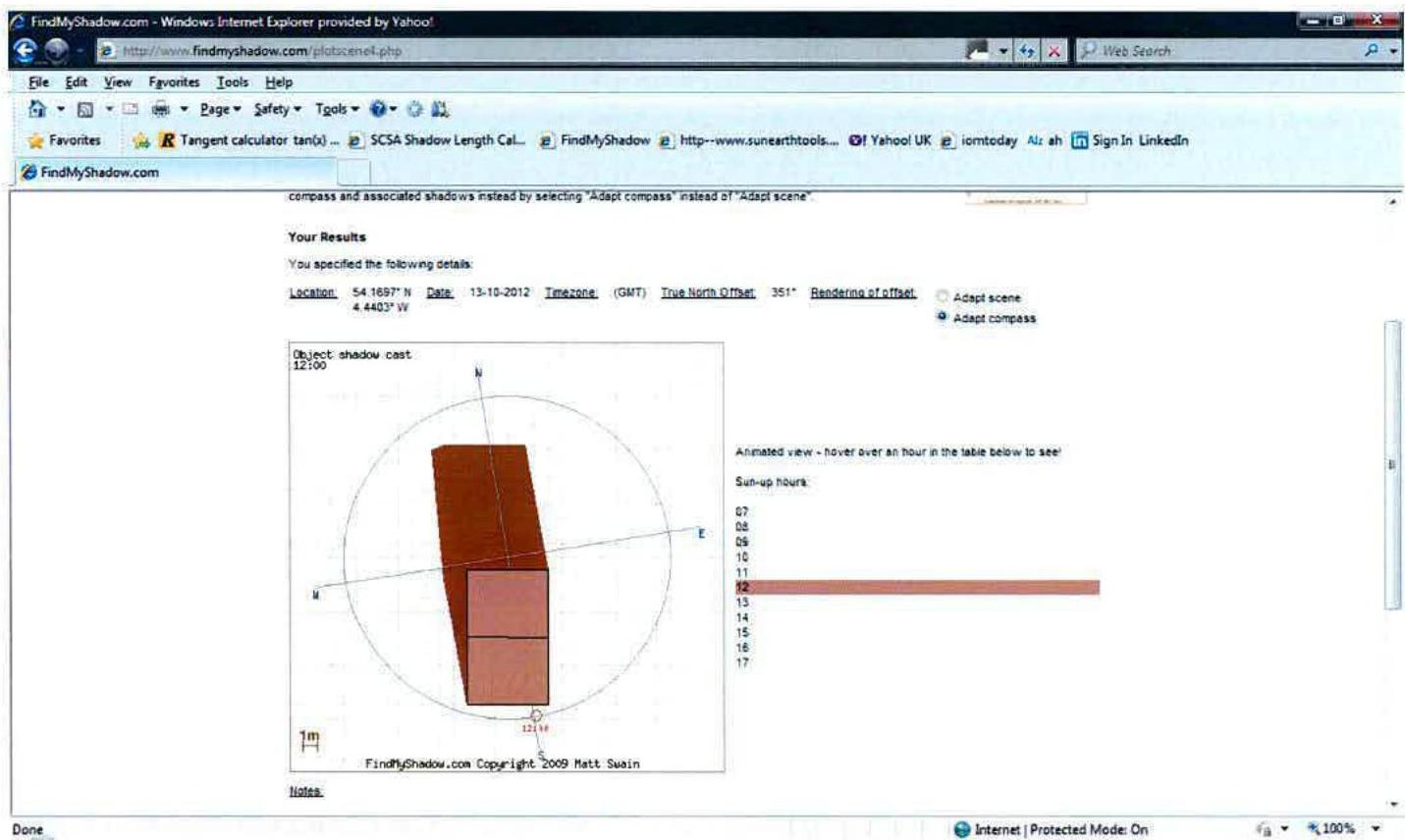

Using the above co-ordinates, a date of 13th October and a height of 7.2m, at 12.00 and 15.00 the shadow can be identified as falling toward No. 3 Majestic Drive

Evidence to Demonstrate the Direction of the Sun's Shadow

Example 3

Using the above co-ordinates and a date of 13th October and a height of 9.5 (representing the tower). At 12.00 & 13.00 the shadow can be identified as falling toward No. 3 Majestic Drive

Evidence to Demonstrate the Direction of the Sun's Shadow

Example 4

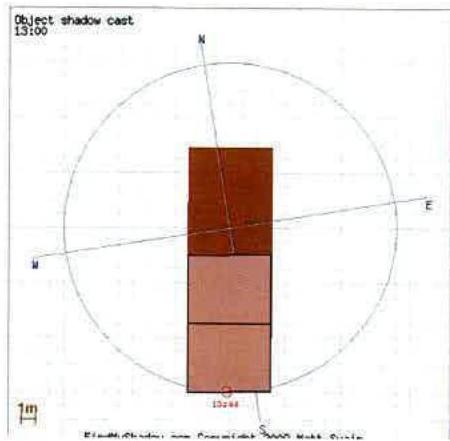

Using the above co-ordinates and a date of 13th February and a height of 9.5 (representing the tower). At 13.00 the shadow can be identified as falling toward No. 3 Majestic Drive

Example 5

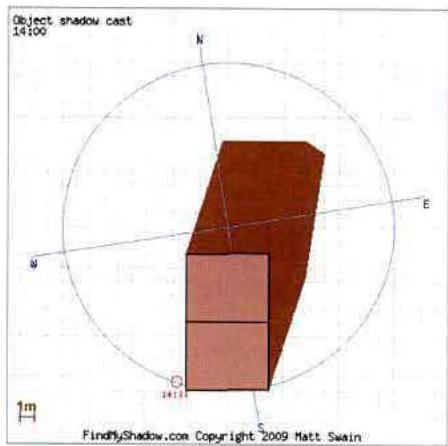

Using the above co-ordinates and a date of 13th March and a height of 7.2 (representing the second floor height excluding tower). At 13.00 and 14.00 the shadow can be identified as falling toward No. 3 Majestic Drive

compass and associated shadows indeed by selecting "Adapt compass" instead of "Adapt scene".

Your Results

You specified the following details:

You specified the following details:

Location	54 1097° N 4 4453° H	Date	13-03-2012	Timezone	(GMT)	True North Offset	351°	Rendering of offset
								☐ Adapt scene ☑ Adapt compass

Animated view - hover over an hour in the table below to see:

Sun-up hours: 27 30 28 10 11 12 13 14 15 16 17 18

Notes:

Location	54 1097° N 4 4453° H	Date	13-03-2012	Timezone	(GMT)	True North Offset	351°	Rendering of offset
								☐ Adapt scene ☑ Adapt compass
