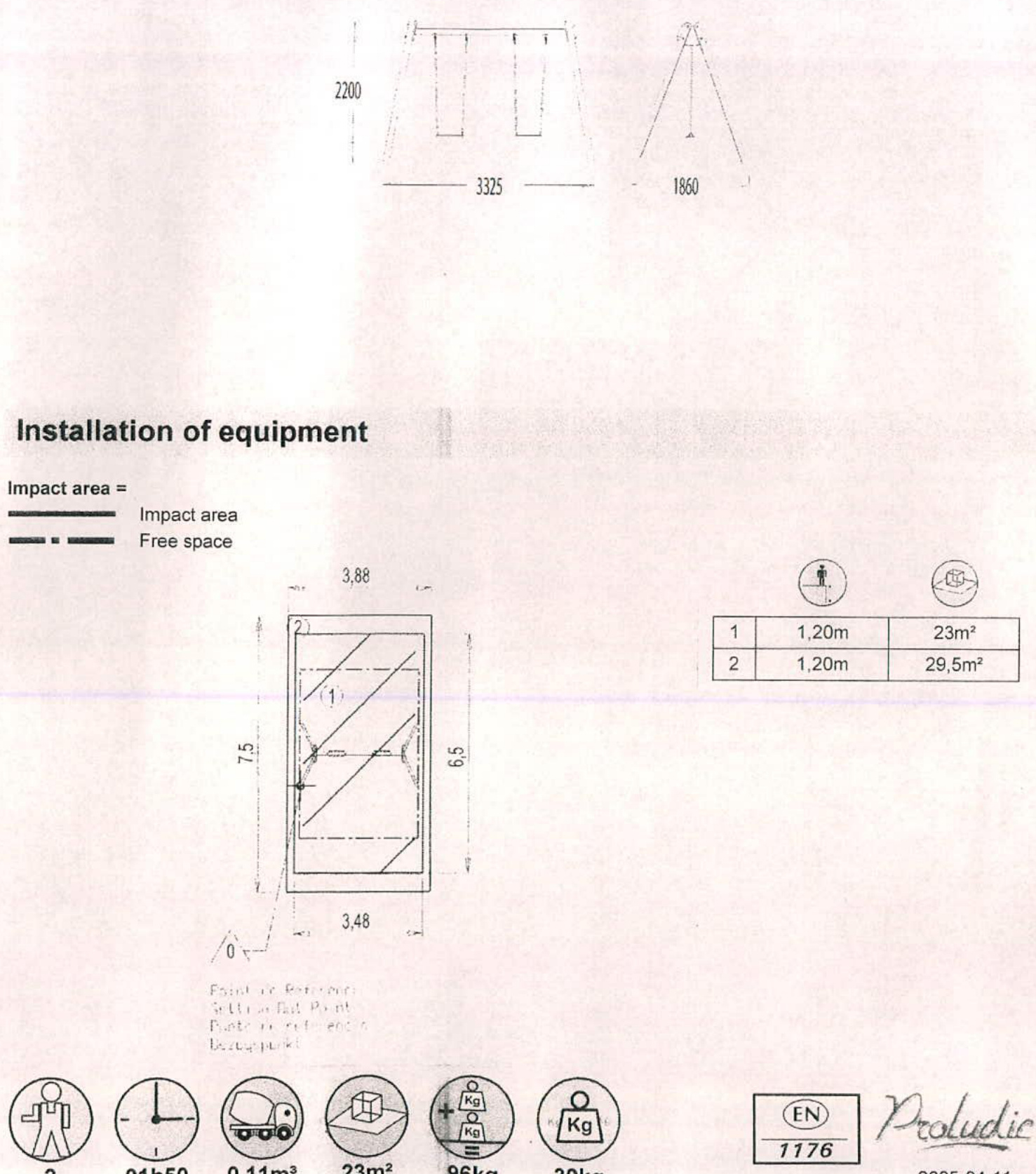

Installation of equipment
Impact area $=$
Rotating equipment

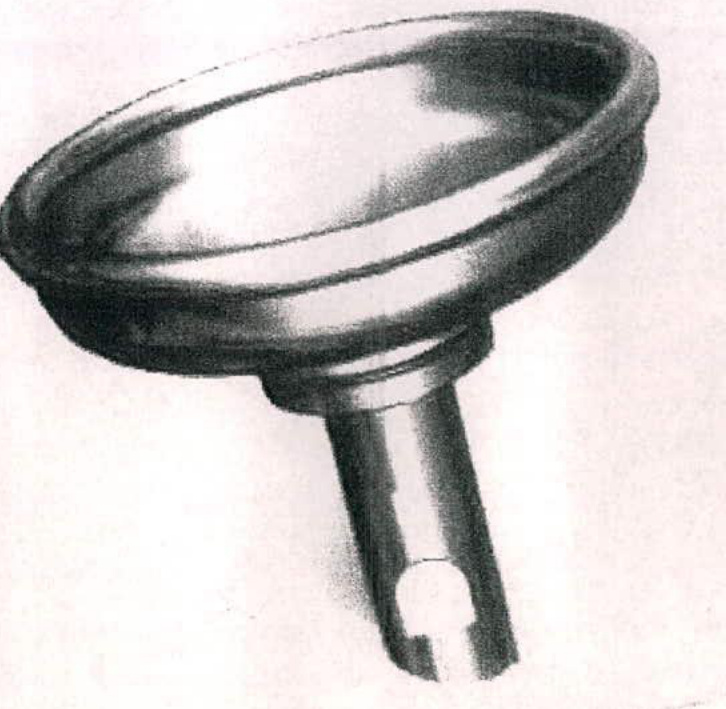

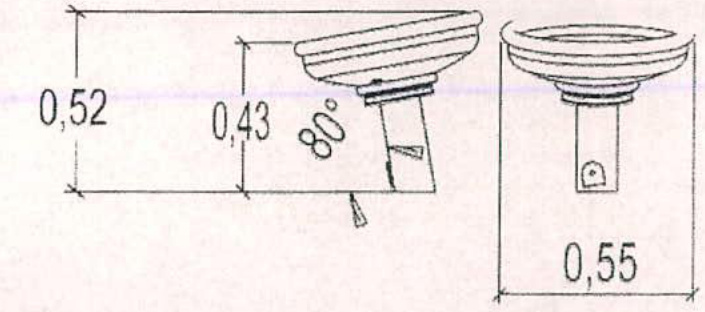

A technical sketch or illustration of a metal funnel or drain outlet component.Technical line drawing showing dimensions and angles for a swing seat or similar play equipment component.
$6 \div$
Play value
rotating
balancing meeting / role play
Accessibility Motor disability Sensorial Disabilities Learning Disabitites
Technical information

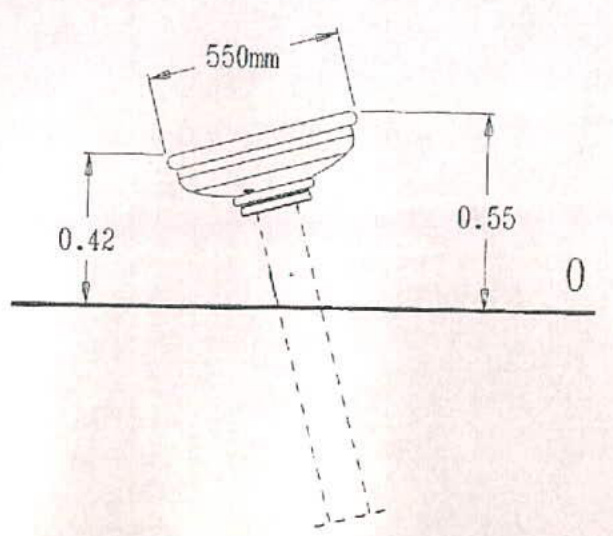

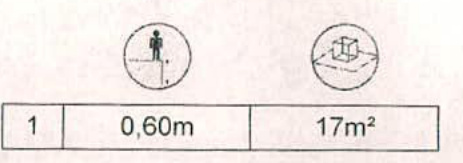

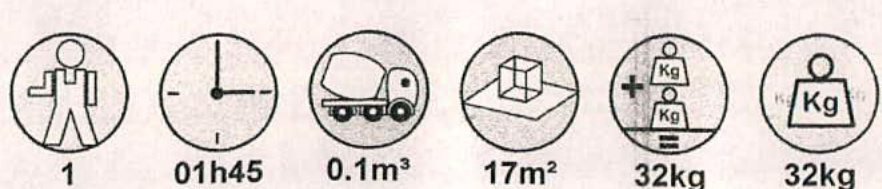

Technical cross-section drawing showing the dimensions and ground installation details of a play equipment post or leg.A technical engineering drawing showing a geometric layout with dimensions and labels.A cropped section of a specification table displaying dimensions and area for a proposed item, accompanied by schematic icons of a person and a structure.A technical legend displaying six circular symbols with labels indicating time, volume, area, and weight, likely used for construction specifications or safety assessments.

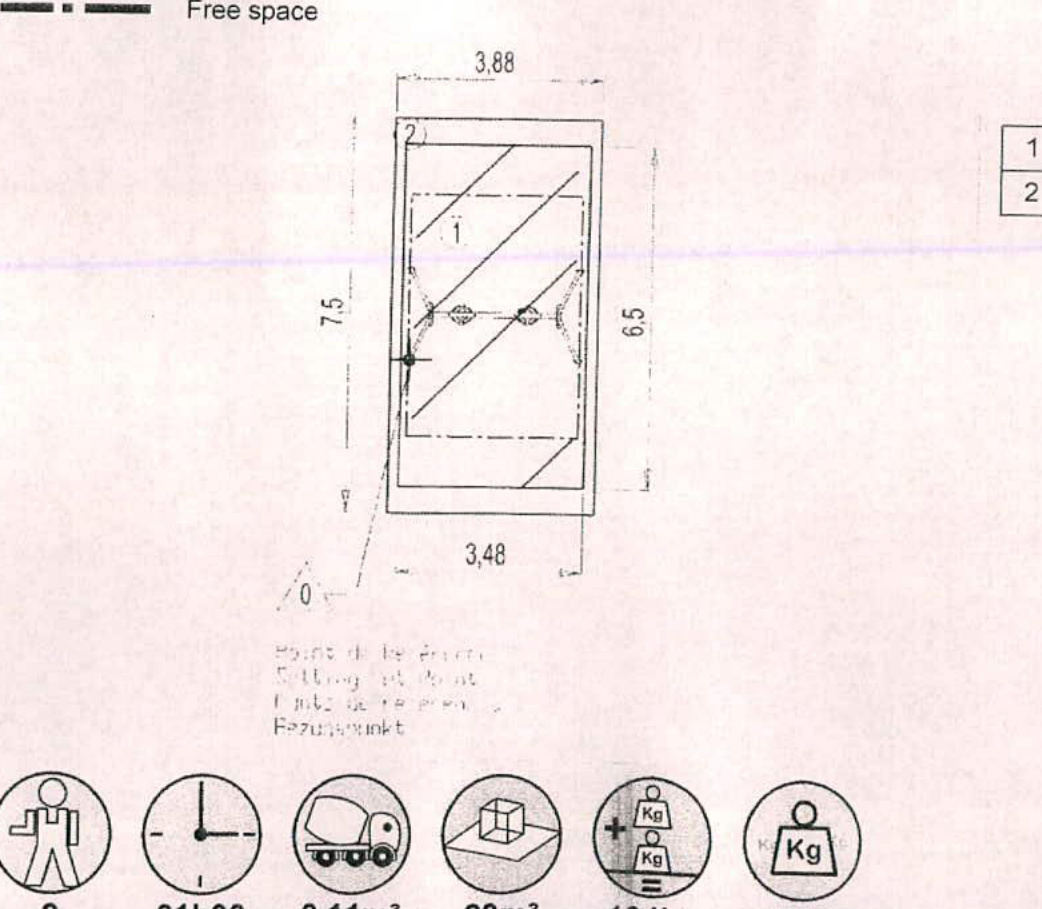

Installation of equipment

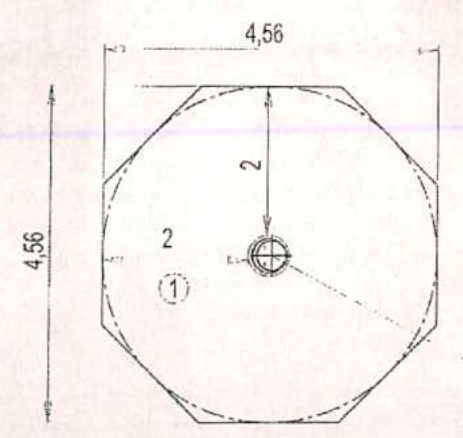

Impact area $=$

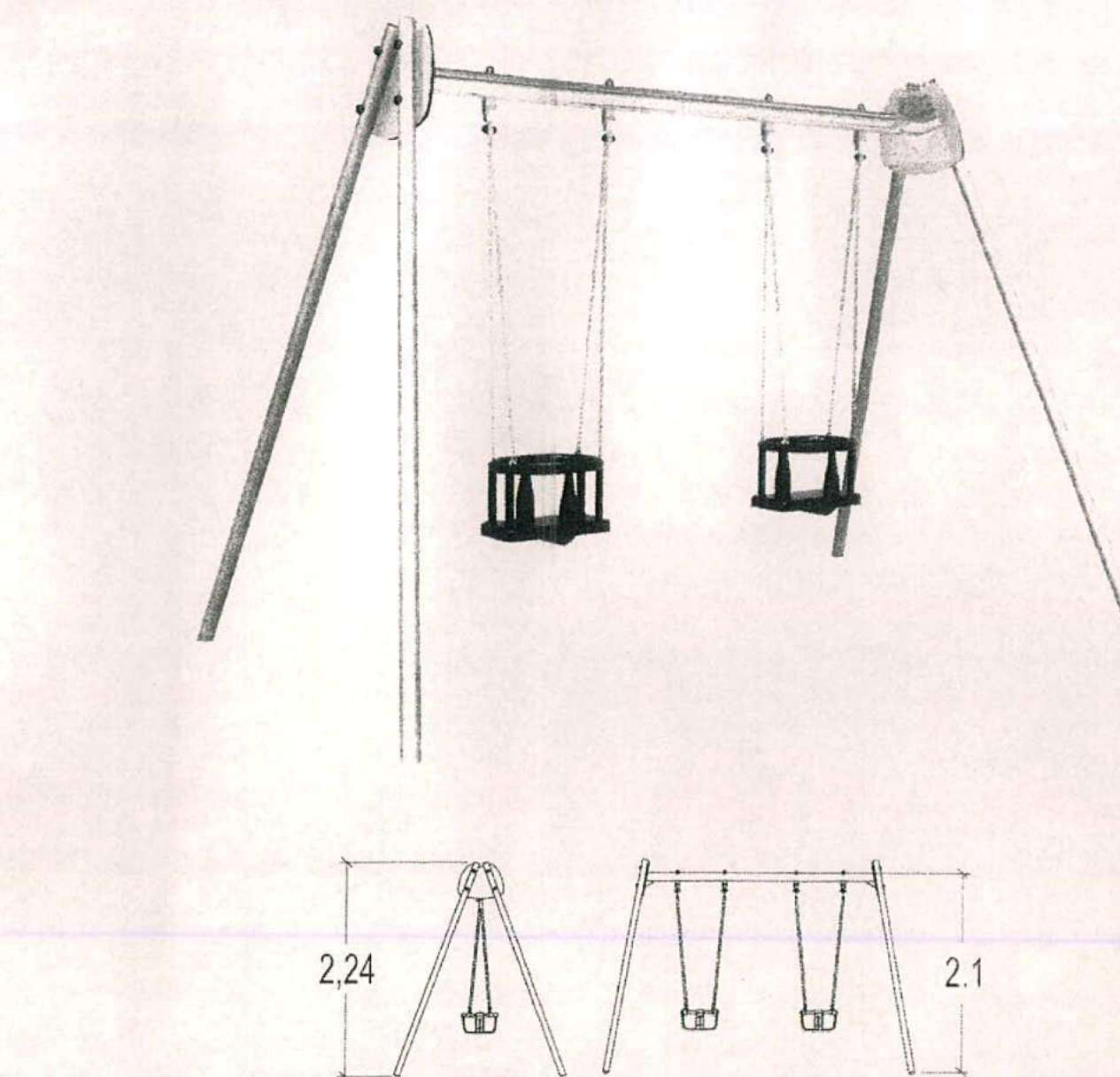

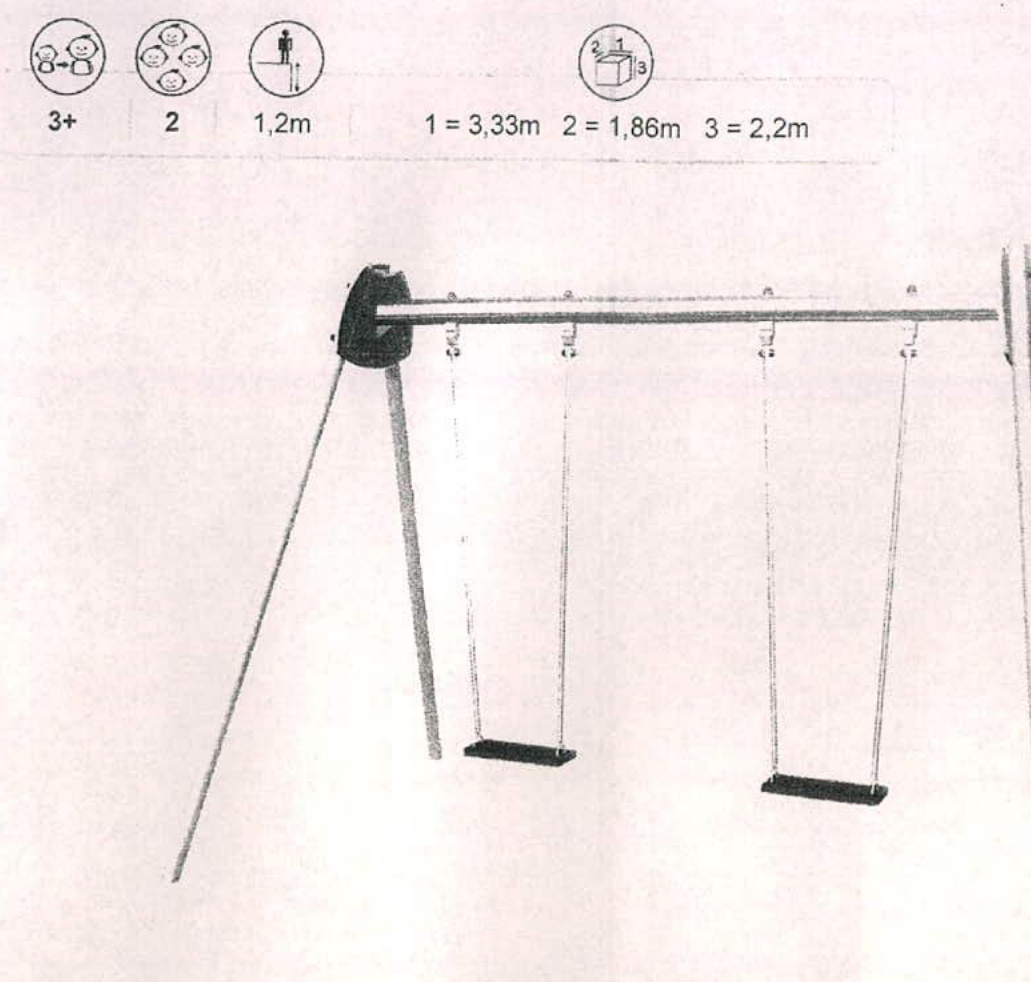

Swings <br> (technical specification)

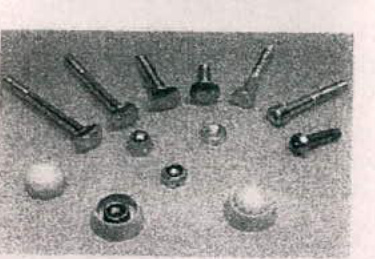

A grainy, low-resolution close-up image showing a dark angular shape, likely a roofline or corner of a structure against a lighter background.A grainy, low-resolution image showing a dark diagonal shape, likely a close-up of play equipment or a structural element.A very grainy, low-resolution black and white photograph depicting a piece of vertical play equipment, likely a swing set, with a person standing at the base.A grainy, low-resolution photograph showing a close-up of a dark structural beam overhead and hanging chains below, resembling a swing set.A grainy black and white photograph showing a collection of metal bolts, screws, and nuts arranged on a surface, likely detailing the fixings for the proposed play equipment.
1- The support legs are made from 60 mm galvanised steel.

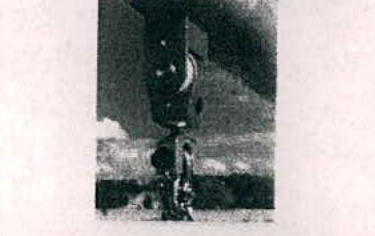

2- The horizontal beam is manufactured from 89 mm diameter galvanised steel.
3- The swing bearings are made of stainless steel.
4- The coloured panels are made from a 13 mm thick compact material (HPL). Robust in construction, it offers excellent resistance to weathering and vandalism.

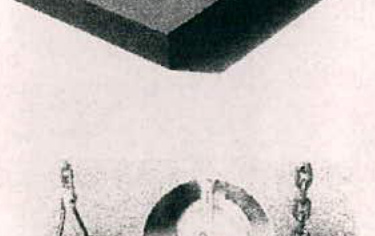

5- The swing seats are made of shock absorbing moulded honeycomb rubber. The swing chains are made of galvanised steel. The seat fixing brackets are made of 10 mm stainless steel wire. PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle.
6- The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
