Support Statement (Part 2 of 2)

Appendix 1

Northern Trust Company Ltd Mr J Tootell Lynton House Ackhurst Park Chorley PR7 1NY

Town And Country Planning Act 1999

The Town and Country Planning (Development Procedure)(No 2) Order 2013 In pursuance of powers granted under the above Act and Order the Department of Environment, Food and Agriculture determined to APPROVE an application by Seymar Developments Limited, Ref 15/01141/B, for the Demolition of existing bungalow and erection of a four storey block comprising of eight residential apartments with associated car parking and landscaping at Land At Greenbank Bungalow Corner Of Park Road And Premier Road Ramsey Isle Of Man IMB 3AR subject to compliance with the following condition(s) and notes (if any) :

1. The development hereby approved shall be begun before the expiration of four years from the date of this decision notice.

Reason: To comply with article 14 of the Town and Country Planning (Development Procedure) (No2) Order 2013 and to avoid the accumulation of unimplemented planning approvals.

1. No development shall take place until full details of both hard and soft landscaping works have been submitted to and approved in writing by the Planning and Building Control Directorate and these works shall be carried out as approved. Details of the hard landscaping works include footpaths and hard surfacing materials. The hard landscaping works shall be completed in full accordance with the approved details prior to the first occupation of any of the proposed apartments hereby permitted. Details of the soft landscaping works include additional planting within the site and along the boundaries of the site. All planting shall be carried out in accordance the approved details in the first planting and seeding seasons following that first occupation. Any trees or shrub which within 5 years from the completion of the development dies, is removed or becomes seriously damaged or diseased shall be replaced in the next planting season with another of similar size and species unless the planning authority gives written consent to any variation.

Reason: To ensure the provision of an appropriate landscape setting to the development.

1. The development hereby approved shall not be occupied or operated until the parking and turning areas have been provided in accordance with the approved plans. Such areas shall not be used for any purpose other than the parking and turning of vehicles associated with the development and shall remain free of obstruction for such use at all times.

Reason: To ensure that sufficient provision is made for off-street parking and turning of vehicles in the interests of highway safety.

This approval relates to drawings reference numbers WJ 100-0007, WJ 100-0008A, WJ 100-0009A, WJ 100-00010, 15053-102, 2015 196 001, 2015 196 002 and 2015 196 003 all received on 14th October 2015.

Date of Issue: 18th March 2016

M Gallagher

Director of Planning and Building Control

Guidance Note

This decision was made by the Director of Planning and Building Control in accordance with the authority delegated to him in the name of the Minister and/or in the name and on behalf of the Department.

This permission refers only to that required under the The Town and Country Planning (Development Procedure)(No 2) Order 2013.

Any appeal against this decision must be in accordance with the criteria set down in that instrument.

Specifically, a valid appeal must be in writing, signed by the appellant, and submitted to the Department within 21 days of the date of this Notice. To further validate the appeal it must contain:

• ☐ Payment of a planning appeal fee as prescribed in the Town and Country Planning (Application and Appeal Fees) (No2) Order 2015 (currently £165);
• ☐ The reasons for making the appeal; and
• ☐ An election to have the appeal conducted by means of an inquiry (a hearing) or by means of written representation.

An appeal form and guidance notes are available from either Planning & Building Control, Tel 685950, or to download from the Department's website https://www.gov.im/categories/planning-and-building-control/planning-applications/planning-appeals/how-to-appeal/.

The proposed development must not be commenced until either:

• ☐ The time for requesting an appeal has expired; or
• ☐ Any appeal has been determined;

Whichever is the later.

If no appeal is lodged within 21 days of the date of issue overleaf, and this decision becomes final, the Department's public reference copy (counter copy) of the planning application may be collected by the applicant or their agent from Murray House.

A copy of the Officer's report and any correspondence which led to the assessment and decision is now available to view on the Government's website (via Online Services) or at the Department's offices Murray House, Mount Havelock, Douglas. https://www.gov.im/planningapplication/services/planning/search.iom

Please note that if the counter copy of the application is not collected within THIRTY DAYS following the last date on which a planning appeal can be made it will be destroyed without further notice.

Department of Environment Food and Agriculture, Planning & Building Control Directorate, Murray House, Mount Havelock, Douglas, Isle of Man, IM1 2SF. Email [email protected]. Tel 01624 685950

Department of Environment Food and Agriculture, Planning \& Building Control Directorate, Murray House, Mount Havelock, Douglas, Isle of Man, IM1 2SF. Email [email protected]. Tel 01624685950

Appendix 2

Kontakt

**Kontakt

Digitized by Google

1. Introduction

This document provides an overview of the key concepts and methodologies used in the study of quantum mechanics. It covers fundamental principles, mathematical formulations, and practical applications.

2. Fundamental Principles

2.1 Wave-Particle Duality

Quantum mechanics introduces the concept of wave-particle duality, where particles such as electrons and photons exhibit both wave-like and particle-like properties. This duality is central to understanding the behavior of quantum systems.

2.2 Superposition

The principle of superposition states that a quantum system can exist in multiple states simultaneously until it is measured. This is mathematically represented by a wave function, denoted as .

2.3 Uncertainty Principle

The Heisenberg Uncertainty Principle states that it is impossible to simultaneously know the exact position and momentum of a particle. This is expressed as:

where is the uncertainty in position, is the uncertainty in momentum, and is the reduced Planck constant.

3. Mathematical Formulations

3.1 Schrödinger Equation

The Schrödinger equation is a fundamental equation in quantum mechanics that describes how the quantum state of a physical system changes over time. It is given by:

where is the wave function, is the Hamiltonian operator, and is the Hamiltonian operator.

3.2 Dirac Notation

Dirac notation is a convenient and convenient way to represent quantum states and operators. It uses bra-ket notation, where a quantum state is described by a quantum state, and bra-ket notation is used to represent quantum states and operators.

4. Practical Applications

4.1 Quantum Computing

Quantum computing leverages the principles of superposition and entanglement to perform computations that are infeasible for classical computers. Quantum bits, or qubits, are the fundamental units of quantum information.

4.2 Quantum Cryptography

Quantum cryptography uses the principles of quantum mechanics to secure communication. Quantum key distribution (QKD) is a cornerstone of quantum computing, where key distribution is used to identify key quantum states.

5. Conclusion

Quantum mechanics is a cornerstone of modern physics, providing a framework for understanding the behavior of particles at the smallest scales. Its principles and mathematical formulations have led to groundbreaking technologies and continue to drive innovation in various fields.

6. References

• Griffiths, D. J. (2005). Introduction to Quantum Mechanics. Pearson.
• Shankar, R. (2012). Principles of Quantum Mechanics. Plenum Press.

Appendix 3

Appendix 4

Project No: 2015.196 Project: Proposed Apartments, Mooragh Park, Ramsey, Isle of Man for Seymar Developments Limited. Date: 7 October 2015 Subject: Flood Risk Assessment and Drainage Strategy GRAHAM SCHOFIELD ASSOCIATES CONSULTING CIVIL AND STRUCTURAL ENGINEERS

72 Balcarres Road Leyland PR25 3ED

Tel (01772) 459383 Fax (01772) 459384 Email [email protected]

1.0 Proposal

Seymar Developments Limited propose to develop the adjacent site to Mooragh Park Hotel, Park Road, Ramsey with a single 4 storey block of 8 apartments. The site is presently occupied by a single detached bungalow, “Greenbank”, a garage and a small garden shed together with surfaced drives and paths and “soft” garden areas.

2.0 Flood Risk Assessment

We have obtained a copy of the relevant area of the Indicative Flood Map which indicates the site in question to be within a High Risk Flood Zone due to Tidal Water. The implication of this warrants precautions which are recommended to combat the affect of Tidal Flooding.

We consider there to be two options to counter the effect of flooding:

i. Ensure that the threshold and ground floor slab level are a minimum 300 mm above flood level.

ii. Design precautionary methods which would be activated on a temporary basis during a flood warning e.g. at door thresholds.

Having examined the existing site levels, we consider the most effective method of protecting the property during a period of high flood levels would be to pitch the floor level 300 mm above flood level. We are advised that flood level is 5.640 m (Douglas 02 Datum) therefore; finished ground floor level shall be set at 5.940 m.

3.0 Drainage Strategy

3.1 Foul Drainage

Sewer Records for the area show a 1050 dia. sewer in Park Road into which the foul water from the existing bungalow discharges into. The proposed

discharge rate of 0.5 litres per second is deemed to be acceptable for the existing sewer to receive.

3.2 Surface Water Drainage

The existing surface water from the bungalow discharges into the 1050 dia. sewer in Park Road.

The attached drawing number 2015.196.002 compares the existing and proposed impermeable areas. As can be seen, the total impermeable area from to the proposed development exceeds the existing by almost .

The proposal is to discharge the equivalent existing area into the existing sewer and the surplus to soak-a-way. The surface water from the adjacent Hotel development also discharges to soak-a-way therefore we are aware that the ground conditions are conducive to infiltration. A typical soak-a-way detail is attached for reference.

Attachments

Drg No. 2015.196.001 - Topographic Survey and Proposed Site Plan Drg No. 2015.196.002 - Existing and Proposed Impermeable "Run Off" Areas Drg No. 2015.196.003 - Soak-a-Way Detail Map No. 1A - Indicative Flood Map.

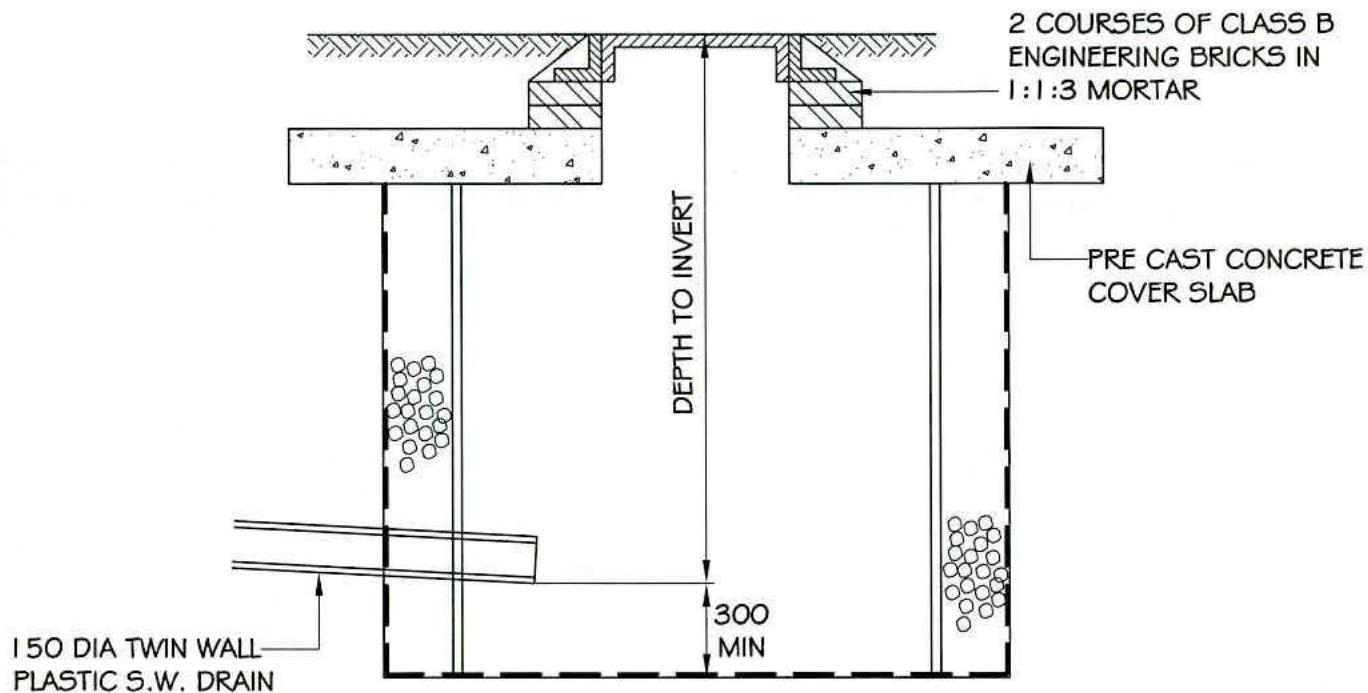

Section

CLIENT PLANNING ISSUE
drawing title DETAILS OF SOAKAWAY
ISSUE LAE	CYCLED GS	SCALE 1:25
DATE OCT 15	DATE 7.10.15	APPROVED GS
CPD No: 2015 - 196 - 003	REV.

1:25

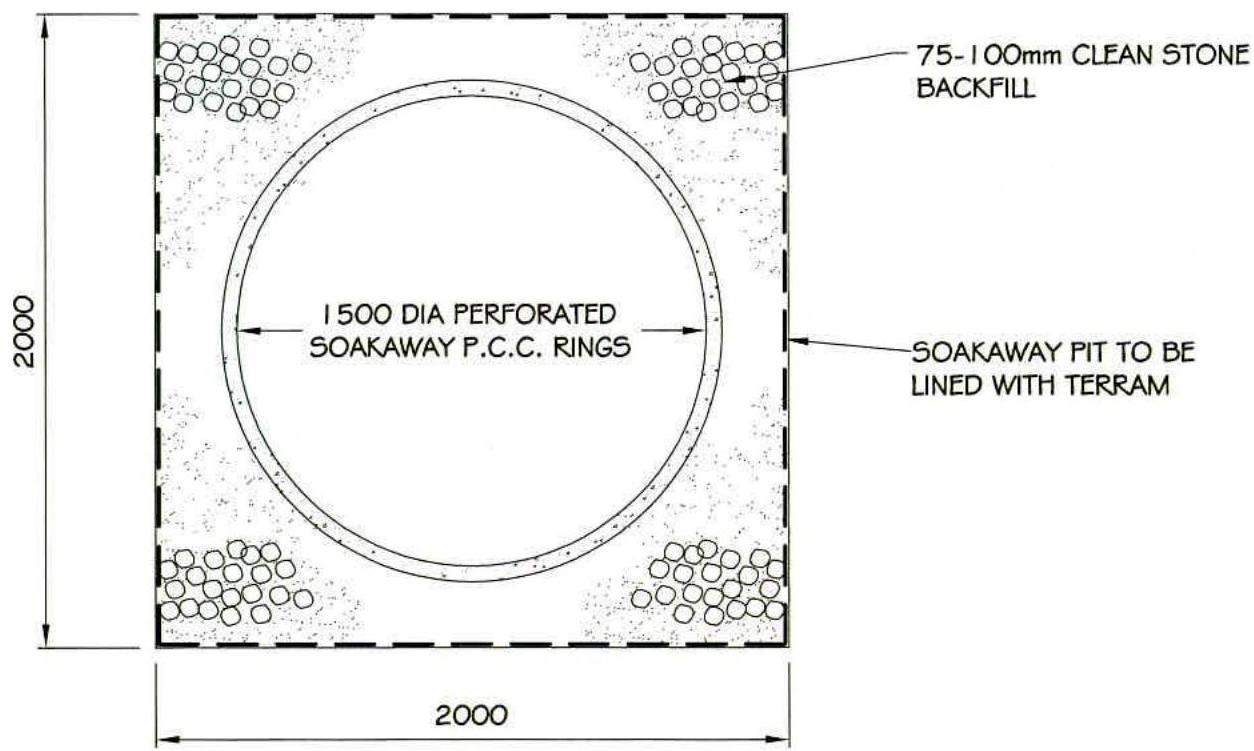

Plan

1:25

client SEYMAR DEVELOPMENTS LIMITED

project PROPOSED APARTMENTS MOORAGH PARK RAMSEY, ISLE OF MAN

Graham Schofield Associates

Consulting Civil and Structural Engineers 72 Balcarres Road, Loyland PH25 3ED tel: (01772) 459383 fax: (01772) 459384 email: [email protected]

Usa

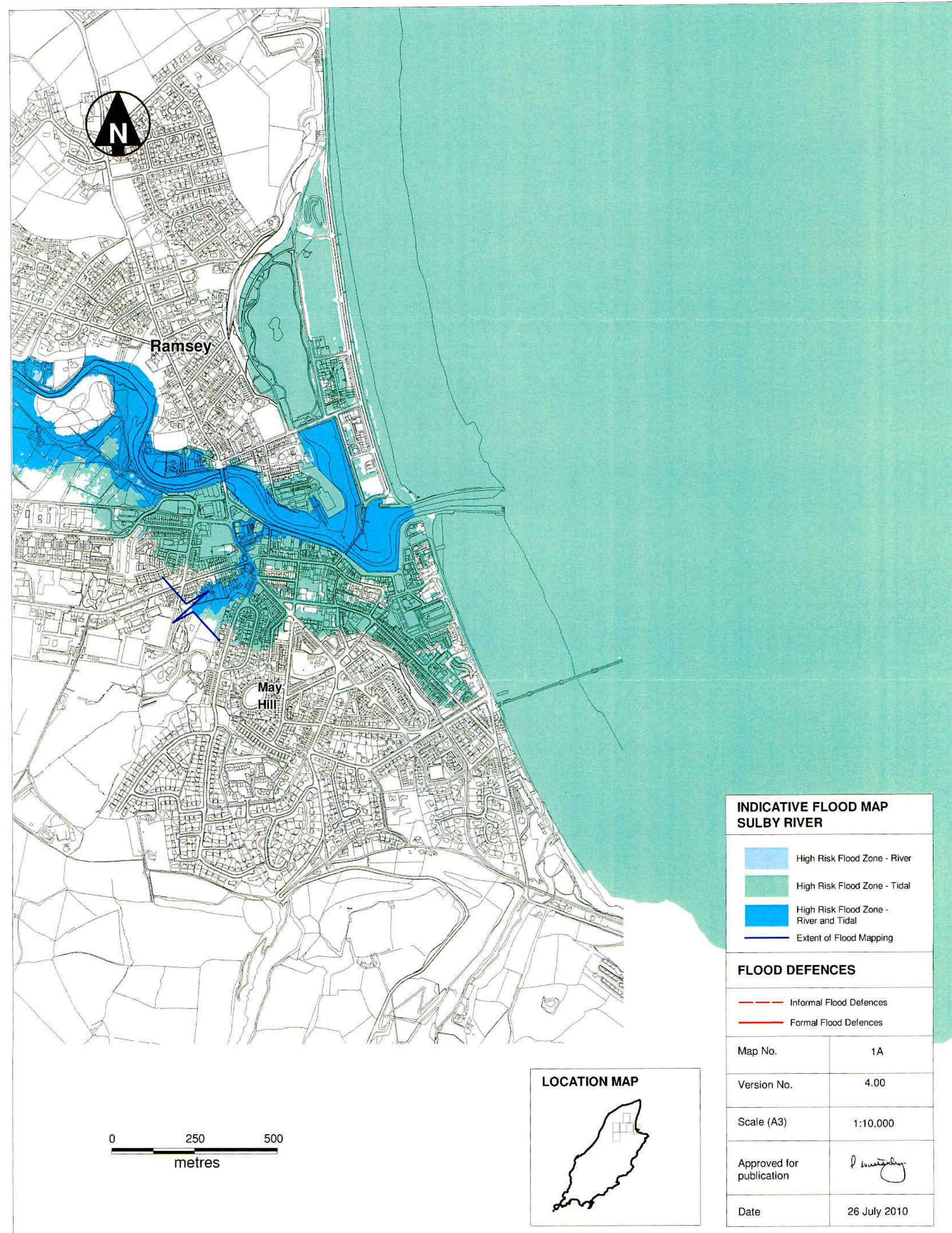

Flood Map displaying the indicative 1 in 100 year river and 1 in 200 year tidal flood outlines in the Sulby River catchment. Climate Change is accounted for in the river flood by increasing the 1 in 100 year peak flow estimate by . For the tidal flood, an annual climate change allowance has been added for sixty years. The flood map does not take into account all flood defences which may be in place now or in the future.

Mapping is based upon the Isle of Man survey map with permission of Department of Local Government and Environment. (c) Crown Copyright

Unauthorised reproduction infringes copyright and may lead to prosecution or civil proceedings.
